CentreStack Full Branding Template
Branding and White-Label Support
Table of Contents
Download White Paper
CentreStack includes branding and white-label support. Out of the
box, the product is white-label ready and there are many items brand-able, such
as the web portal and the included white-label clients. However, for service providers
that require full branding service, most of the branding needs to happen at build
time and requires the following information prior to the full branding service.
The items include the artworks, End User License Agreements, and code signing certificates.
If the out-of-box branding options work for you, you can go straight to the cluster
manager branding section and configure the branding yourself. If you need full-branding
service instead, this article documents the full branding support and the required
Web Portal Branding
Web portal branding is covered 100% by the cluster manager. There is a branding
section inside the cluster manager. Most of the items required in here can be directly
applied to the web portal branding section. See page Branding Options for web portal and white-label related options.
- Desired Delivery Date: _______9\30\2010________
- Company Name: ______________Gladinet_______________________
This will create c:\Program Files\Gladinet folder.
- Product Name : ___________CentreStack Drive_______________
- This will create c:\program files\gladinet\CentreStack drive
- This will also be the title of the program window
- Please specify a default drive letter. ______Z:\_______
- What do you call your cloud drive? ______My Gladinet Drive_____________
- This shows up in Windows Explorer
- Company Text Logo:
- transparent background (.png format)
- Mostly grey/black composition
- dimension : 130x30 (pixels)
- 32-bit true color
Windows Client Branding
- Product Logo
- This is the logo that will show on desktop, taskbar and etc representing the product.
- This logo will also be used in add\remove programs, windows explorer and the taskbar.
- 128x128 (png format, with transparency preserved, no white background, use transparent
- 32-bit true color
- Also need 1024x1024 (png format, for iPhone App icon)
Best Practice: Since this product logo will be used in different places, from 1024x1024
(iOS), to 48x48 (windows desktop application icon) to 16x16 (windows taskbar icon),
We recommend the product logo
- Simple to view when it is small 16x16
- Close to square or circle that occupy most of the space.
- Simple in color and graphic details
- Installer Header Background 1
This is shown at the first screen on the installer
- Since the installer will put black text on it, the background is best with light
color, not dark color
- 500x70 (pixels)
- Please Specify RGB values for the background if it is a single color background.
- Installer Header Background 2
This is the second bitmap, 500x70. It is required to keep most of the top, left
part (left of logo) because the installer will need to put some words next to it.
It is Ok to put some text on the bottom.
- (optional 16x16 32bit) Animation icons for connecting:
- (optional 16x16 32bit) Disabled icon:
- (optional 16x16 32bit) Product icon for systray: (recommend same as product icon)
- (optional 16x16 32bit) Management console icon: (recommend same as product icon)
- (optional 16x16 32bit) Upload/Download/Transferring animation icon sequence:
- EULA (This will replace the Gladinet EULA) .
The file needs to be in either text format or in RTF format.
- Code Signing Certificate.
This will be used to sign the windows binaries. (For User Account Control, sometimes,
you will see UAC prompt about elevated privilege. The company name on the certificate
will be shown). Also for installer, Windows will ask, do you want to install app
from [company name], which is from the Code Signing Certificate.

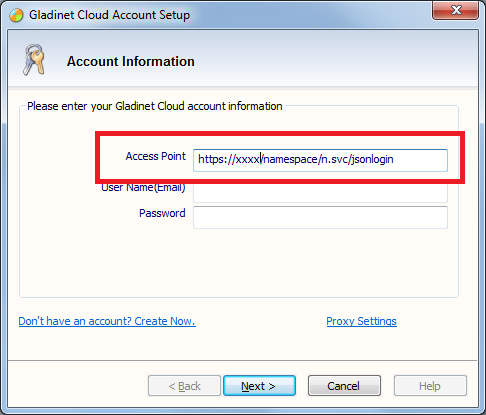

- CentreStack Cloud endpoint (can be hard-coded and hidden): _____https://cloud.acme.com__________________

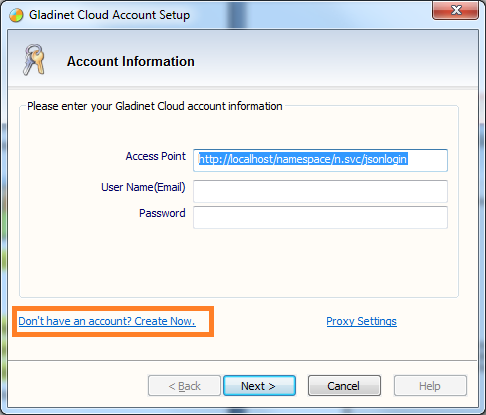

- Show Create Account Link?
- Test Account
- User ID : _____________
- password : ____________
- Support Information:
- Email : firstname.lastname@example.org_________________________
- Phone : ____________________________________
- Web site : ______http://www.gladinet.com_______________
- Support URL: ___________________________
- Setup File Name:
- ClientName_x86_xxx.exe (32-bit and internal version)
- ClientName_x64_xxx.exe (64-bit and internal version)
- Title Bar string for the management console. __CentreStack Management Console___
- System Tray Dialog Drive Icon:
- 64x64 bmp format, with border, prefer round border.
iOS Application Branding
For iOS Application, you will first need to apply for an iOS Developer account in
your company's name. You will pay Apple $99/year for the developer account.
After that, you have an iTunes Connect account to upload the iOS application bundle
to your account inside the Apple App Store. The application will show up under your
company's name, instead of CentreStack's name. Check out the iOS Developer Program
- 260x50 Logo: PNG format, with transparent background. This logo will show at the
iOS app login page
- 1024x1024 product icon (This icon will be used for iTune Connect Application Publishing)
- Testing accounts (iOS Application submission requires a test account for review
Android Application Branding
You will need to acquire a Google Play account first. We will provide 2 APK files.
First APK file is signed by Gladinet so you can test it on your testing device and
capture screenshots for Google Play application publishing. The second APK file
is an un-signed APK file that you can sign yourself. Check out Android Signing your application
- 512x512 Application Launch icon. (Normally this can be derived from the 1024x1024
- Product icon in the size of 32x32, 48x48, 72x72, 96x96. (Normally this can be derived
from the 1024x1024 icon)
Mac OS X Application Branding
Mac desktop Application branding will use the same artwork from Windows, with the

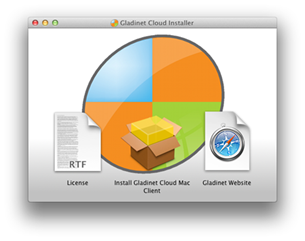

- Installer (DMG file) background image. (Width=500, Height=350, format=png)
- Installer (PKG) background (width=620, height=418, format=png)
- The logo on the background needs to be at the top-left, and width< 100
- The middle part will have text box (From Mac OS X) on top, so recommend the background
image being light so have enough contrast to focus on the text.
Branding Example Artworks
Click this link to download the zip file
that contains an example branding image files including png, bmp, ico and icns files.
Please modify the bitmaps in place in its original format and send the updated zip
file back to email@example.com with the above branding template filled in.
Please reference product page for other documentation.
