Cluster Administration

All the cluster administration are web based. The first thing to do is to login to the web portal at the CentreStack server.

_images/image120.png

If you are the default cluster administrator, after you login, you will be directed to Centerstack Administrator dashboard portal page.

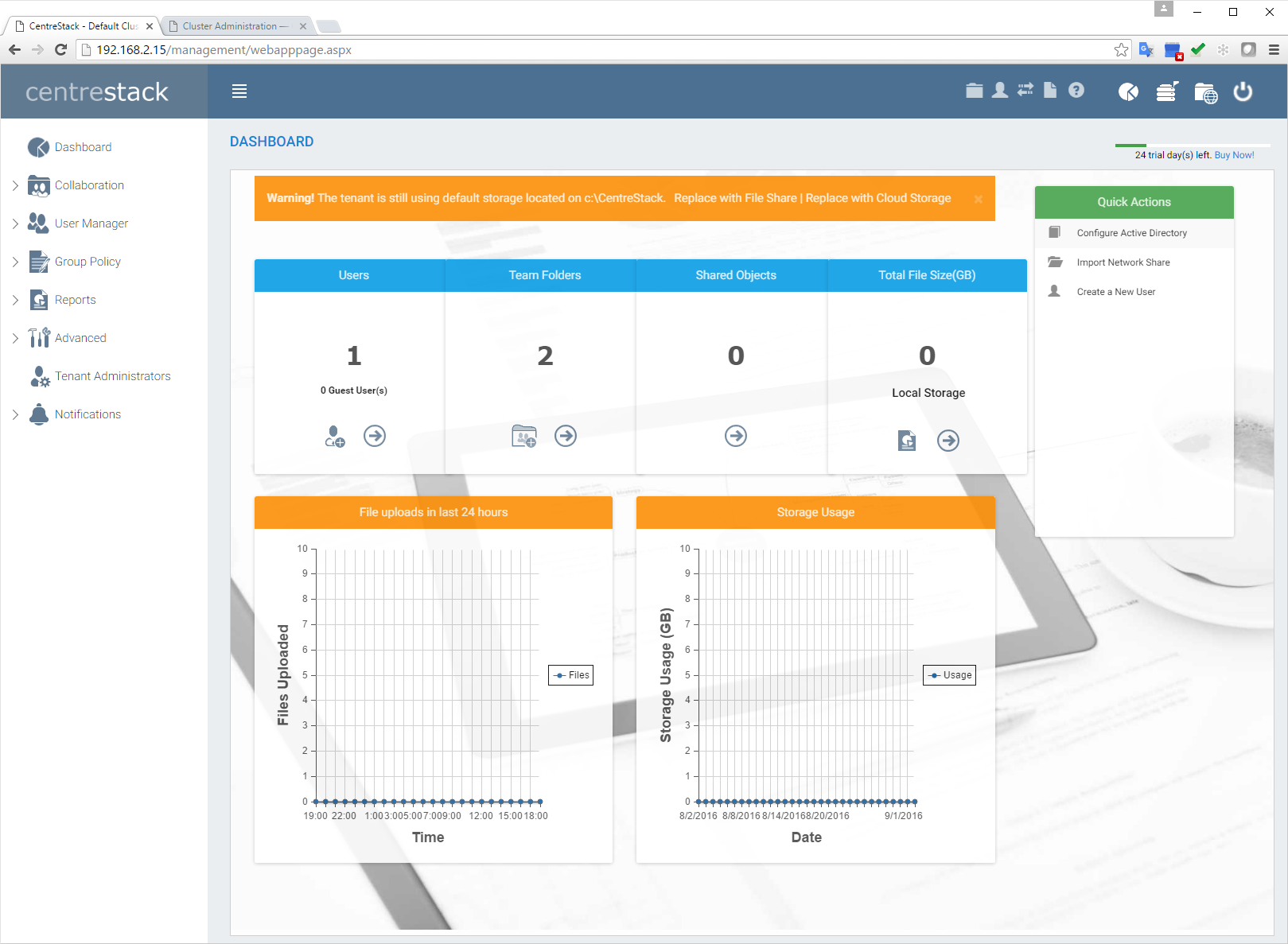

If you are at the files and folders view of the web portal, you can elevate twice to the cluster manager web portal. First step is to go to the “Management Console”,

_images/image002.png

and after that, click on the “Cluster Management” to go to “Cluster Manager”.

_images/image003.png

Note

This section documents the cluster administration for master administrator.

Cluster Manager Web Portal

Cluster Manger is web based management tool for the whole cluster. It is organized into tabs. These tabs include “Tenants Manager”, “Cluster Admin”, “Cluster Branding” and so on.

On the top left of the web portal, there is a “hamburger” menu icon that can be used to switch in or out of the left panel. The left panel contains entry links to different sections of the cluster manager.

Dashboard

_images/image138.png

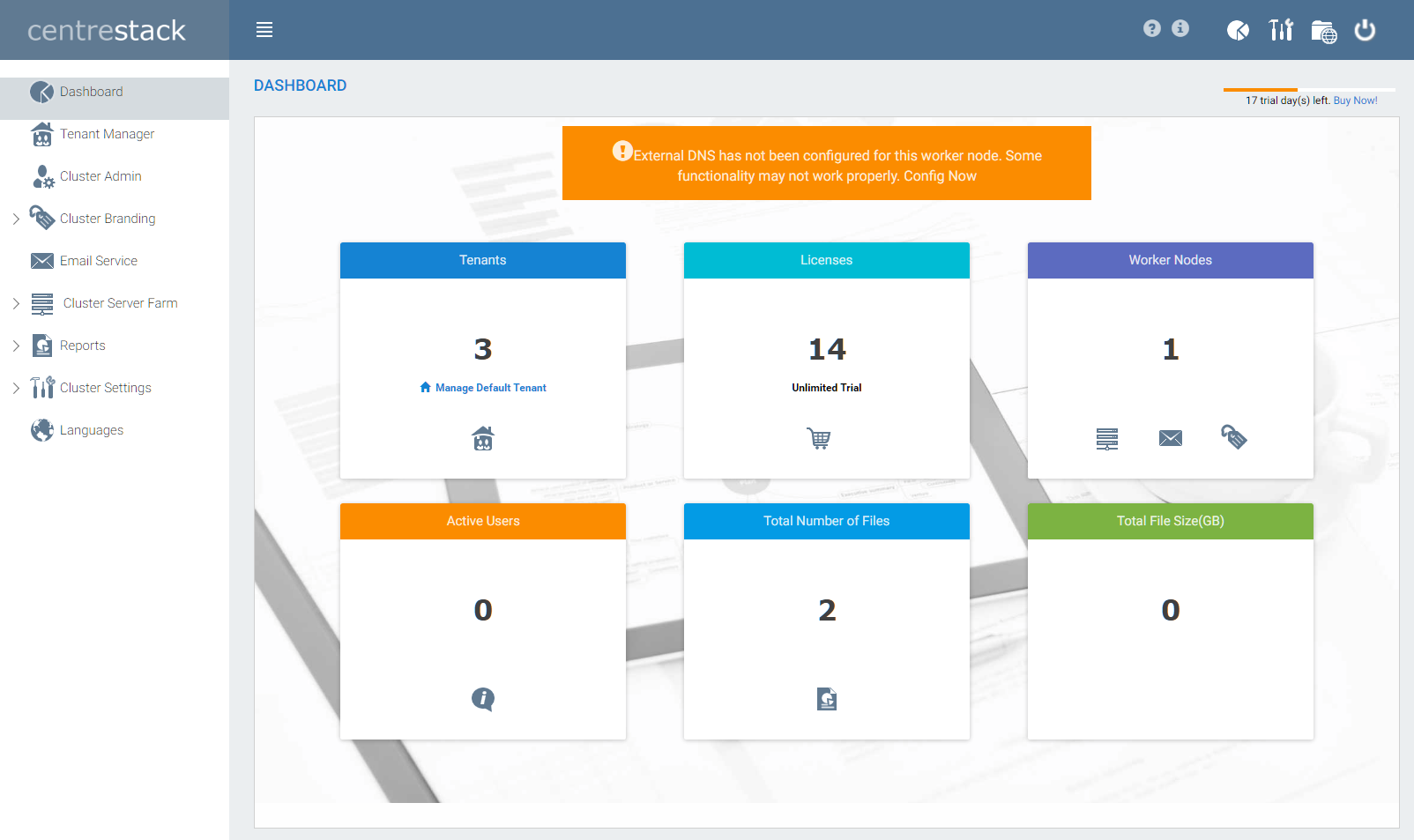

When you login as the cluster administrator, you will be seeing the dashboard page. In the dashboard, you will see the tenants information, licensing information and other information at the summary level.

Note

If it is the first time you installed the CentreStack, you may be seeing the message “External DNS has not been configured for this worker node. Some functionality may not work properly. Config Now” External DNS is a very important property, it is used in directing how outside remote clients connect to the CentreStack server; it is also used in various email templates. If the property is not properly configured, the email template may be using IP address or NETBIOS name as the URL link. However you can pospond the configuration of it until you are ready. For example, get the DNS name ready and get the SSL certificate ready. Before that, you can either leave it as it is or configure it to use IP Address.

Tenant Manager

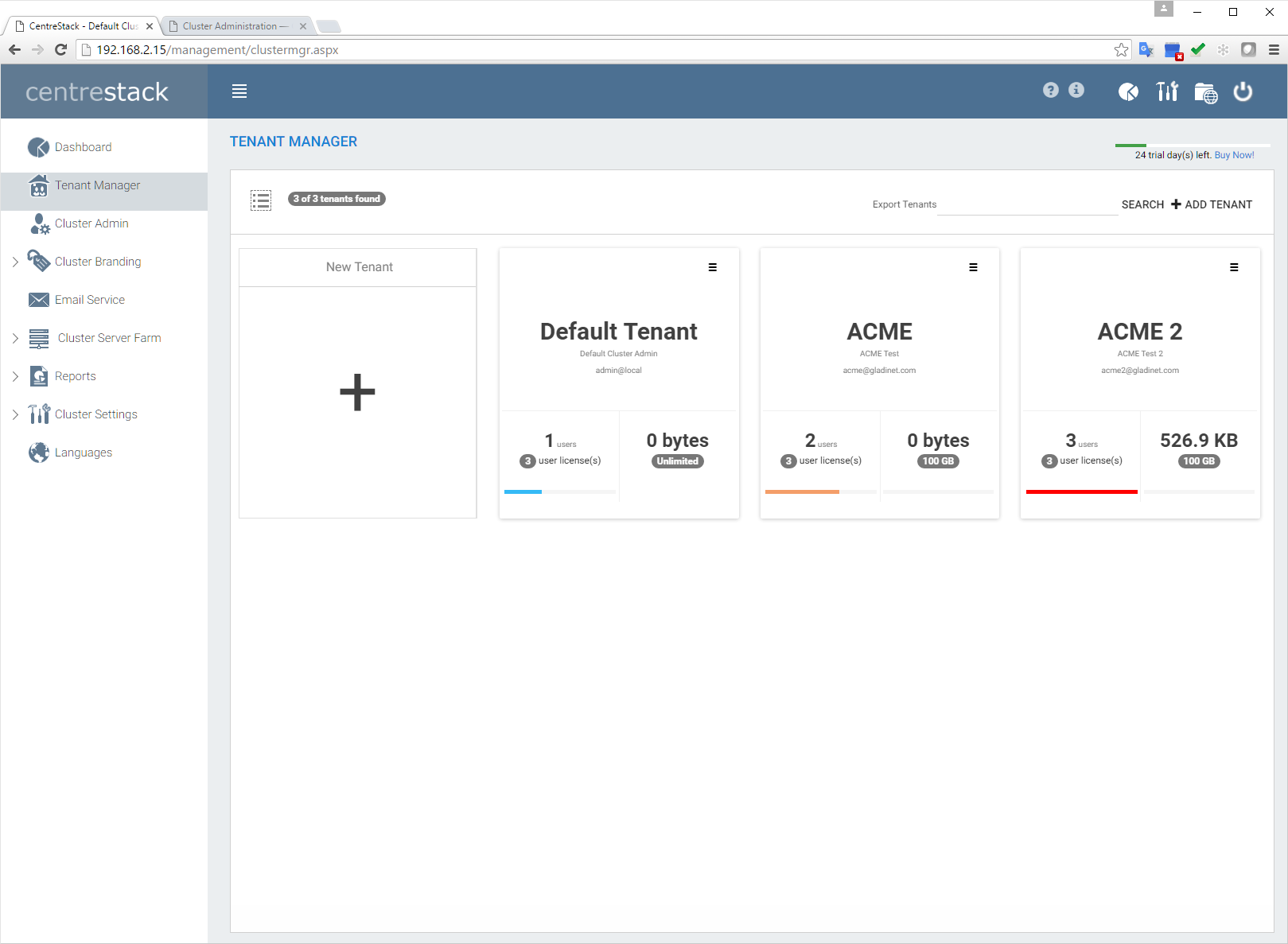

The “Tenant Manager” tab is where you can find a list of tenants on the system and where you can manage tenants.

_images/image004.png

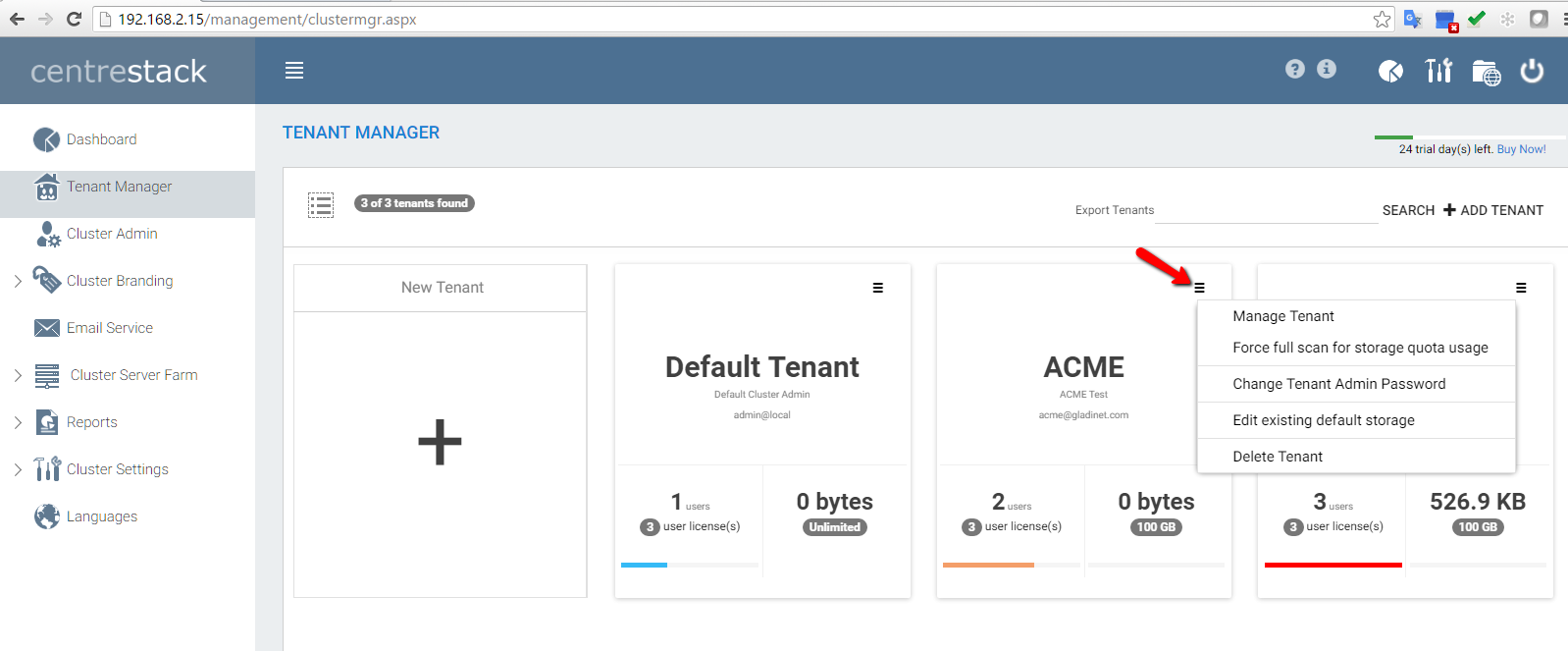

Cluster Admin can also manage a tenant and configure tenant related settings directly from tenants manager page.

_images/image068.png

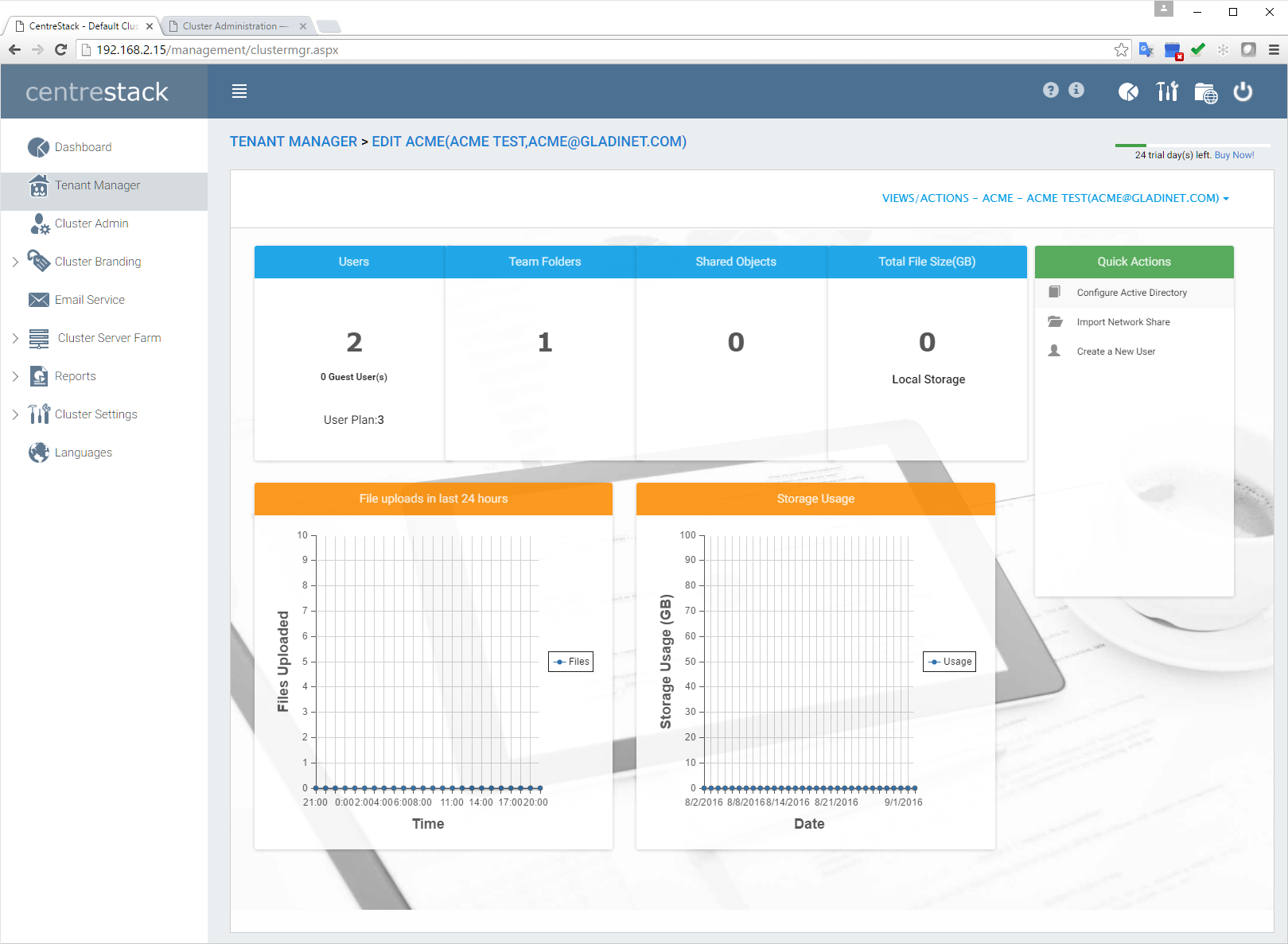

Once clicking manage tenant option, the cluster admin sees the tenant dashboard and also more options to configure tenant settings.

_images/image069.png

Note

the tenant manager URL is at : http://<hostname>/management/TeamsMgrPage.aspx

Here is a video showing the tenant manager

Cluster Admin

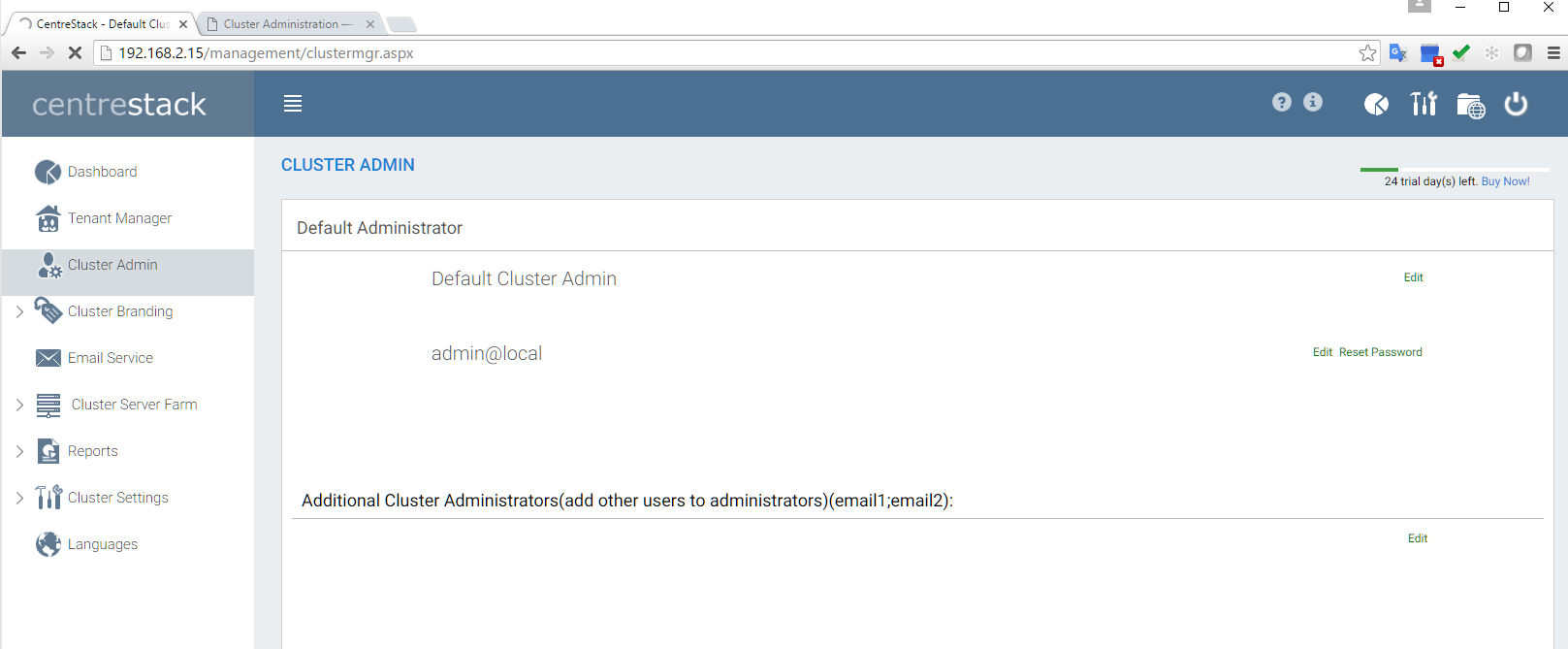

Cluster Admin tab is to change the properties of the default administrator and also to add additional people to be the cluster administrators.

_images/image005.png

Here is a video for changing cluster administrator email

Cluster Branding

Cluster Branding is for changing the logo, bitmaps and other branding related information. There are two branding supports. One is self-service built-in branding, which is completely controlled by the “Cluster Branding” settings on the “Cluster Manager”. The other is full-branding service. Both rely on the “Cluster Branding” to change the look-and-feel of the web portal. Built-in branding will work with white-label clients, which upon the first connection to the cluster, will download the branding related information and use the branding related information. As compared to full-branding service, the full branding clients will have artworks, logo bitmaps and related information burned into the client binaries.

1. General

Under the general tab you can specify the name and other settings as specified below.

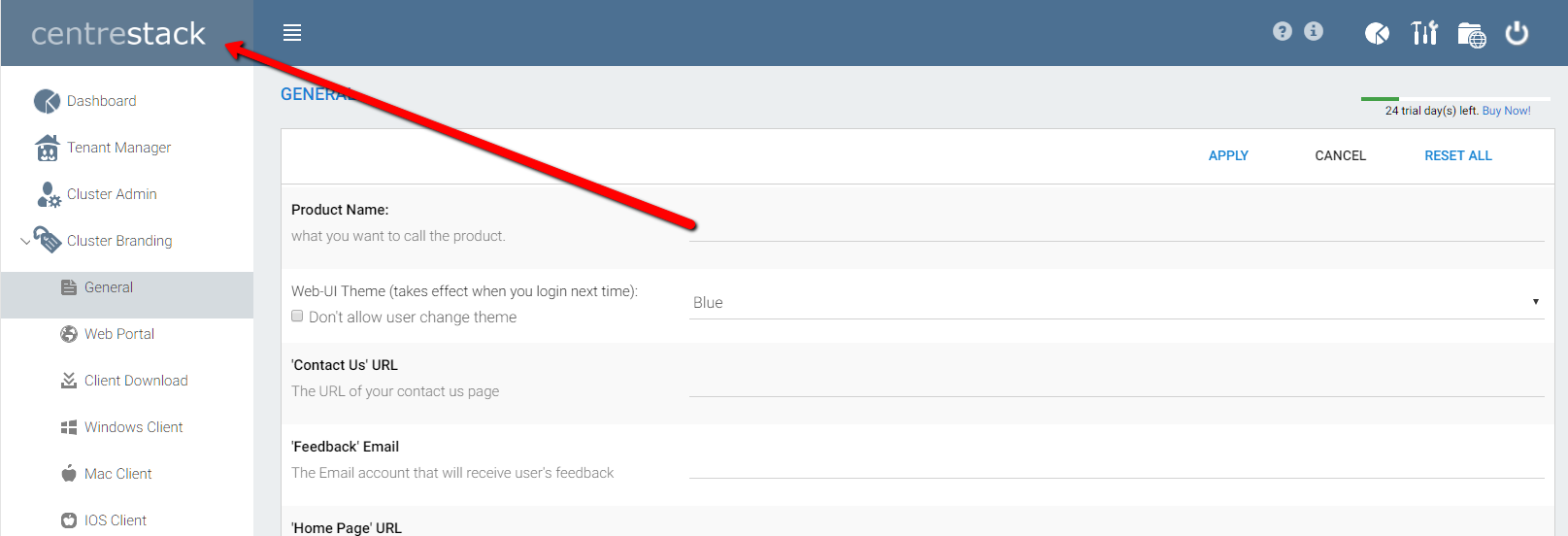

1.1 Product Name

This is where you will specify what you would like to call the product. This is the name that users will see when they login either in web portal or the client applications. You can also choose a color theme which you would like your users to see when they login to the portal. You can choose a color theme that is close to your company colors.

Product Name
_images/image006.png
1.2 Feedback Email

Users’ feedback will be delivered to this email address.

_images/image122.png
1.3 Home Page URL

This is the URL of your ‘Home Page’ page.

_images/image051.png

2. Web Portal

In previous build, the best way to get icons to work is by putting the icon files on the same server and reference the icons via relative link. For example, you can create a sub folder under the Install Folder of the CentreStack, such as under root/imagetest folder. The dimensions for all icons for each setting under web portal should match what is displayed for each setting. The branding of the icons and images require the icons and images with the same width/height as specified or same aspect ratio if the resolution is higher.

In later build, the icons used are what-you-see-is-what-you-get

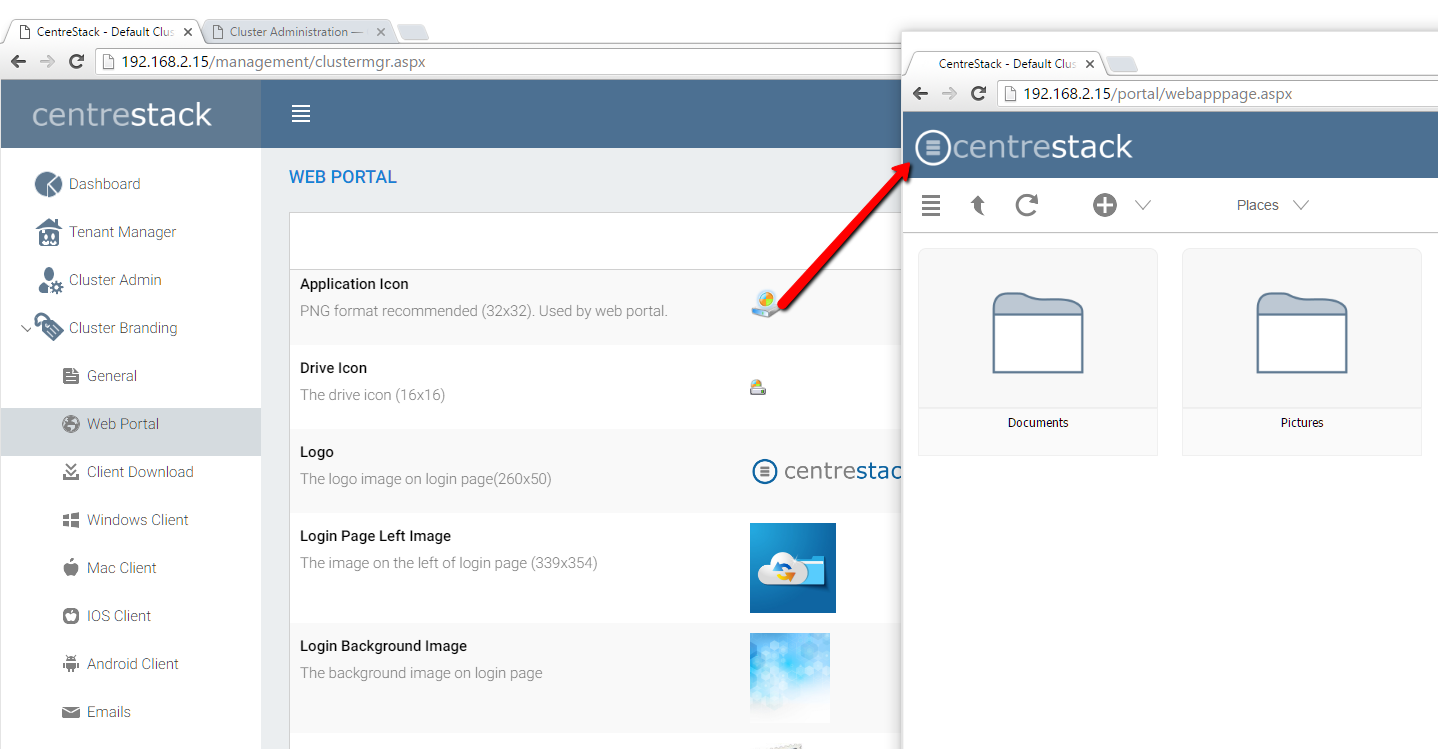

2.1 Application Icon Url

The is the image that is displayed next to the product name in web portal.

_images/image123.png

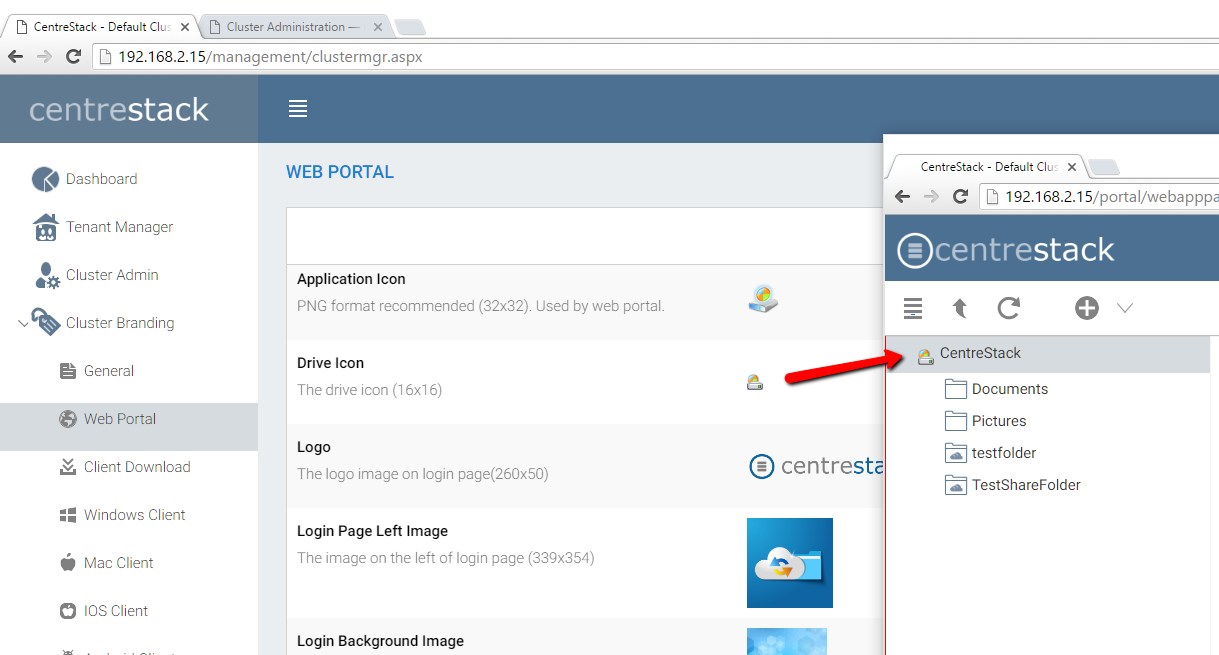

2.2 Drive Icon Url

This is the icon that will be used for the cloud drive. For example in the web portal tree view.

_images/image124.png

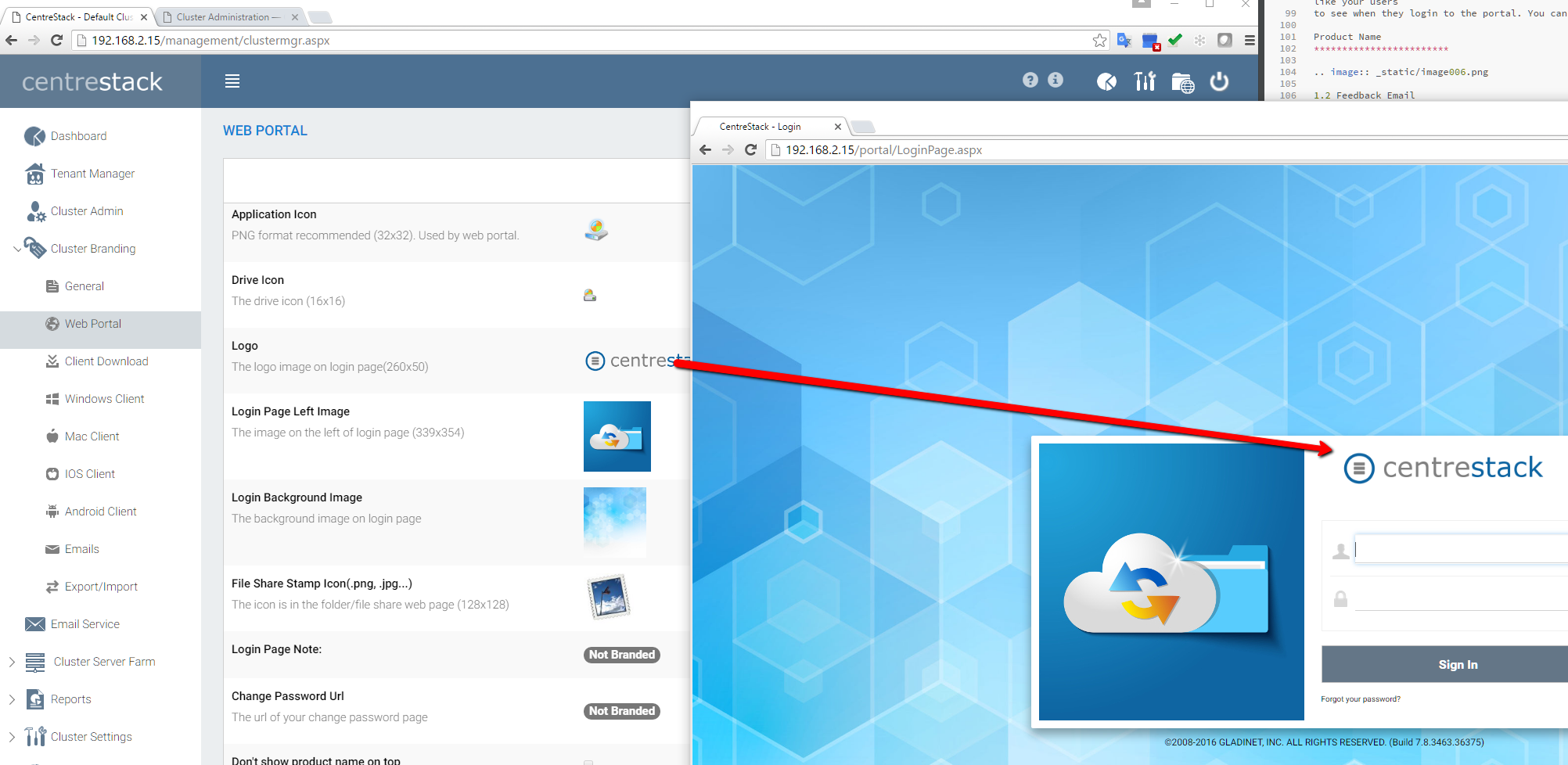

2.3 Logo Url & Login Page Left Image
_images/image125.png

Please follow the same steps for branding settings for ‘Login Backgroud Image’, ‘File Share Stamp...’, ‘Login Page Note:’, ‘Change Password URL’, ‘Tutorial Page URL’.

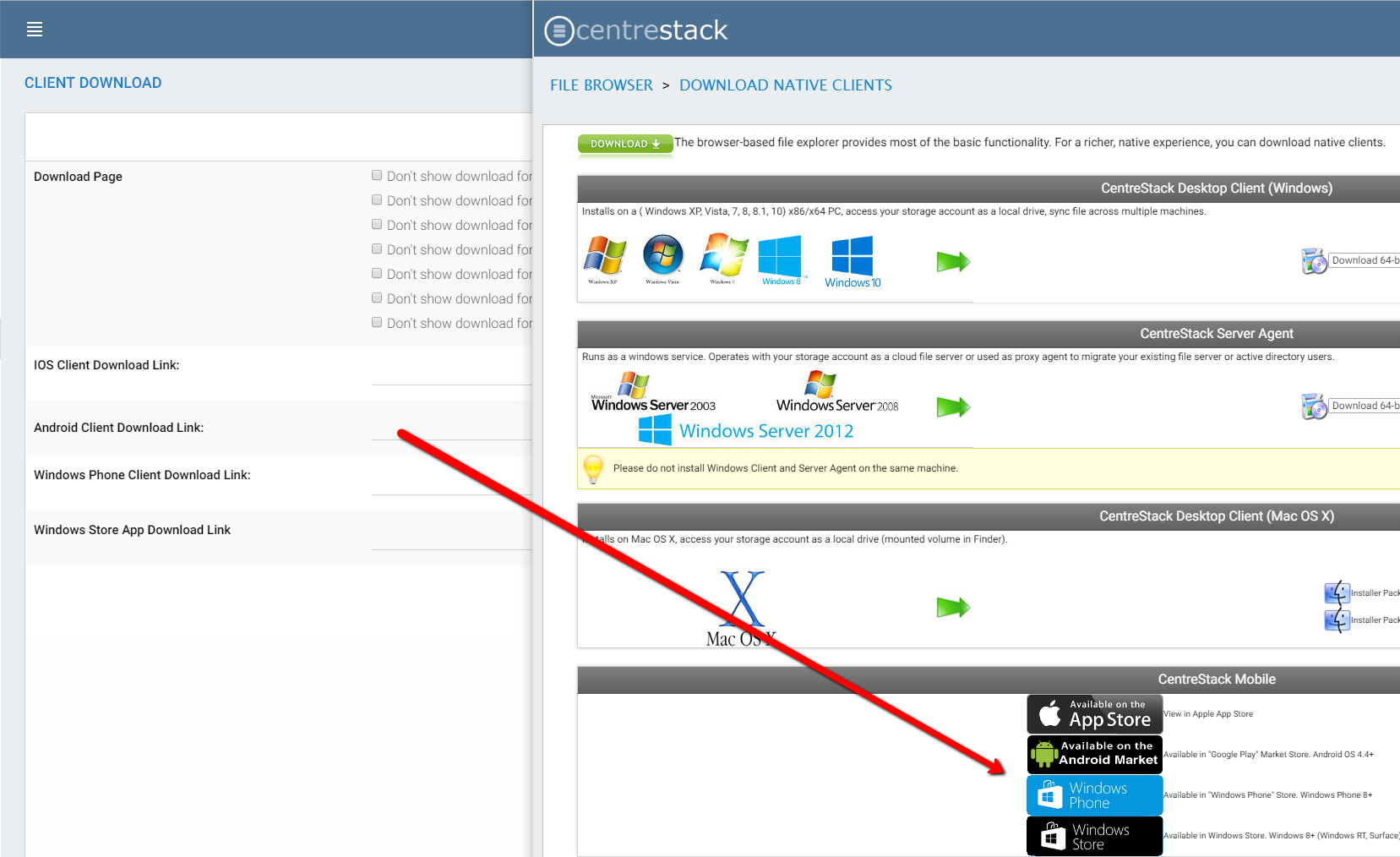

2.4 Download Page

You can choose not to show the download link for different clients here.

_images/image053.png

3. Windows Client

The application icon and drive icon URLs can be specified here. Also, you can put in your company name under ‘Manufacturer Name’ along with the ‘Contact Info’ email. You also have the option here to create your own branded MSI Windows client. You can also use your own code signing certificate in order to digitally sign the MSI package. The advantage of creating your own MSI client package is that when users download and install the Windows Client you provide, they will see your company name along with your branding during the client installation.

Windows client supports multiple languages. Some language packs are included and shipped with CentreStack. If you need to run the Windows client under a different language, you can set the UI Language there.

_images/image055.png

4. MAC Client

You can configure the MAC client and MAC client installation package branding under here.

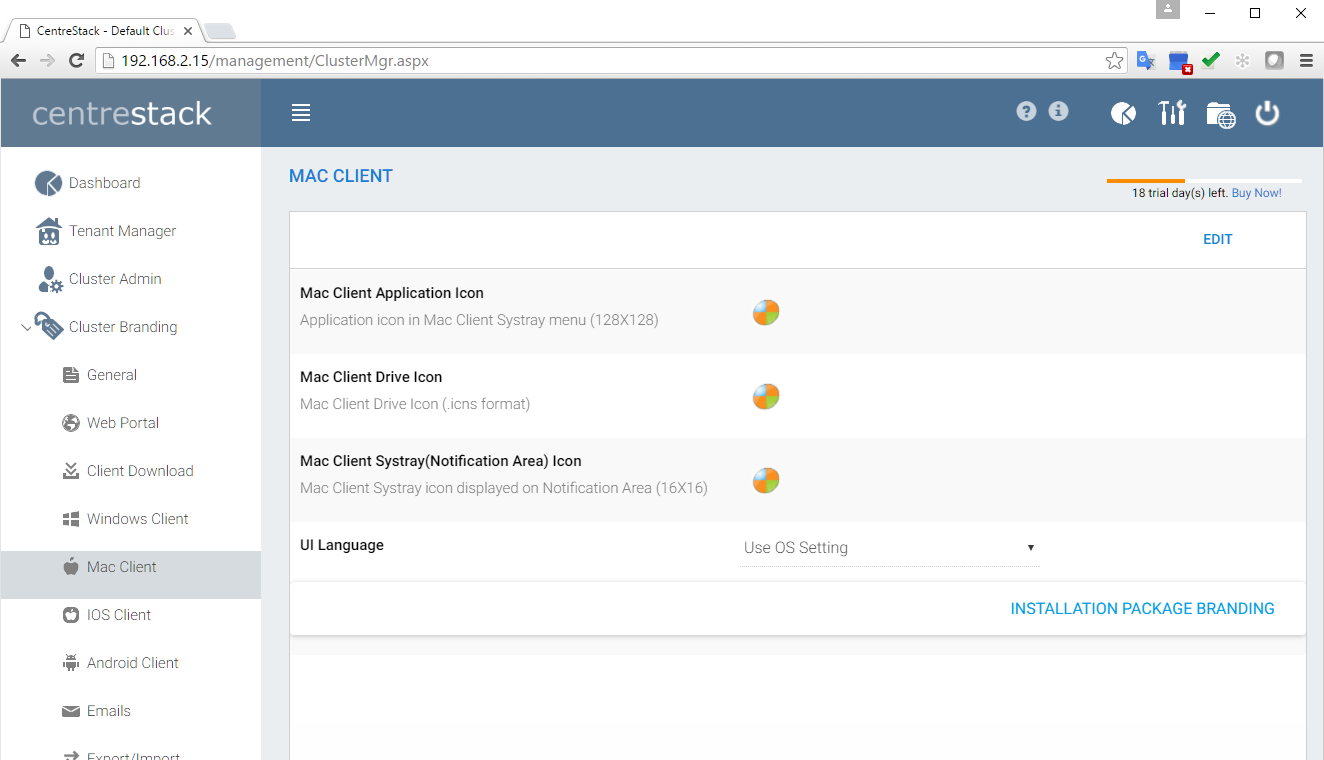

4.1 Client Branding
_images/image056.png

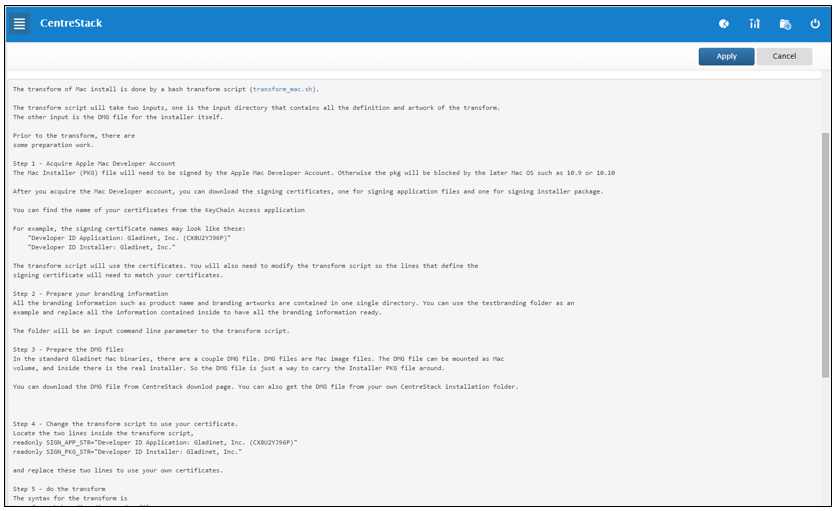

4.2 Installation Package Branding

There is some preparation work required in order to create the MAC client branded installation package. Please read the description and follow all the steps listed under this setting.

_images/image057.png

The transform of Mac installation package is done by a bash transform script (transform.sh). Prior to the transform, there are some preparation work.

Step 1 - Acquire Apple Mac Developer Account.

The Mac Installer (PKG) file will need to be signed by the Apple Mac Developer Account. Otherwise the pkg will be blocked by the later Mac OS such as 10.9 or 10.10.

After you acquire the Mac Developer account, you can download the signing certificates, one for signing application files and one for signing installer package.

You can find the name of your certificates from the KeyChain Access application.

For example, the signing certificate names may look like these:

Note

“Developer ID Application: Gladinet, Inc. (CX8U2YJ96P)”

“Developer ID Installer: Gladinet, Inc.”

You can modify the transform script will use these certificates.

Step 2 - Prepare your branding information.

All the branding information such as product name and branding artworks are contained in one single directory. You can use the testbranding folder as an example and replace all the information contained inside to have all the branding information ready.

The folder will be an input command line parameter to the transform script.

Step 3 - Prepare the PKG files.

In the standard Gladinet Mac binaries, there are a couple DMG file. DMG files are Mac image files. When you mount the DMG files, you will see a PKG file in each of the DMG file. The PKG file will be the input to the transform script.

Once you have the PKG file, the signing certificate and the branding folder, you are ready to do the transformation.

Step 4 - Change the transform script to use your certificate.

Locate the two lines inside the transform script,

readonly SIGN_APP_STR=”Developer ID Application: Gladinet, Inc. (CX8U2YJ96P)readonly SIGN_PKG_STR=”Developer ID Installer: Gladinet, Inc.”

and replace these two lines to use your own certificates.

Step 5 - Apply the transform

The syntax for the transform is

transform.sh branding_dir mac_pkg_file

The generated branding installer will be called output.pkg in the same folder

You can read the transform.sh shell script for more details.

5. Android Client

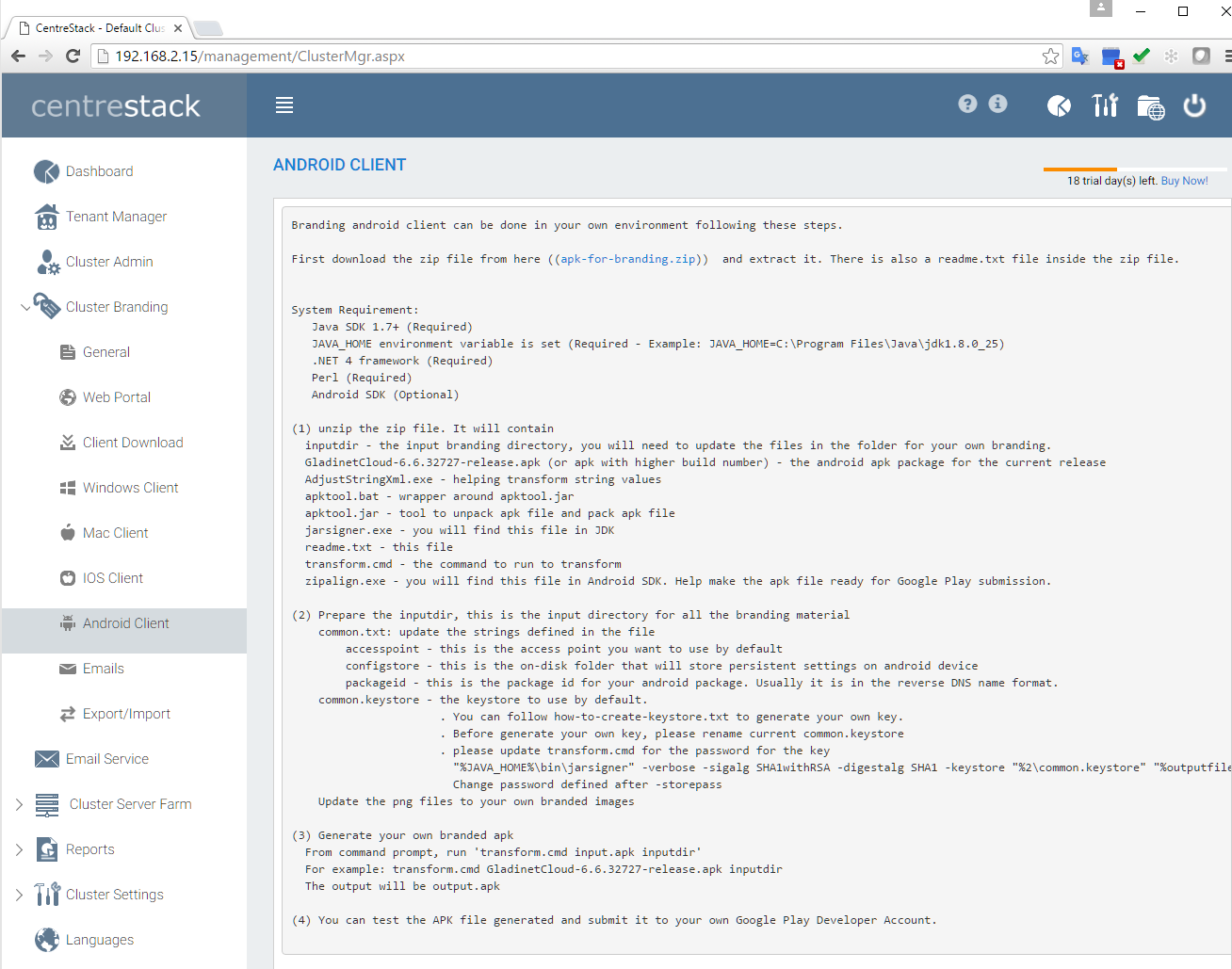

Branding android client can be done in your own environment using the steps listed under this setting.

_images/image058.png

First download the zip file from the web portal and extract it. There is also a readme.txt file inside the zip file.

System Requirement:

  • Java SDK 1.7+ (Required)

  • JAVA_HOME environment variable is set (Required)

    Example:

    JAVA_HOME=C:Program FilesJavajdk1.8.0_25

  • .NET 4 framework (Required)

  • Perl (Required)

  • Android SDK (Optional)

step 1. unzip the zip file. It will contain

  • inputdir : the input branding directory, you will need to update the files in the folder for your own branding.
  • GladinetCloud-6.6.32727-release.apk (or apk with higher build number) : the android apk package for the current release
  • AdjustStringXml.exe : helping transform string values apktool.bat - wrapper around apktool.jar
  • apktool.jar : tool to unpack apk file and pack apk file
  • jarsigner.exe : you will find this file in JDK
  • readme.txt : this file transform.cmd - the command to run to transform
  • zipalign.exe : you will find this file in Android SDK. Help make the apk file ready for Google Play submission.
step 2. Prepare the inputdir, this is the input directory for all the branding material.
  • Update the png files to your own branded images

  • common.txt: update the strings defined in the file
    • accesspoint - this is the access point you want to use by default

    • configstore - this is the on-disk folder that will store persistent settings on android device

    • packageid - this is the package id for your android package. Usually it is in the reverse DNS name format.

    • common.keystore - the keystore to use by default.
      • You can follow how-to-create-keystore.txt to generate your own key.
      • Before generate your own key, please rename current common.keystore
      • please update transform.cmd for the password for the key
“%JAVA_HOME%binjarsigner” -verbose -sigalg SHA1withRSA -digestalg SHA1 -keystore “common.keystore” “%outputfile%.temp” android -storepass android

# (Example above for how to generate keystore. Change password defined above after -storepass)

step 3. Generate your own branded apk

step 4. You can test the APK file generated and submit it to your own Google Play Developer Account.

6. iOS Client

Branding iOS client can be done in your own environment using the steps listed under this setting.

_images/image059.png

First download the zip file from the web portal and extract it. There is also a readme.txt file inside the zip file.

System Requirement:

Mac OS X 10.10 or 10.9 (Required) XCode iOS Developer Account

First unzip the .zip file. It will contain:

  • inputdir - the input branding directory, you will need to update the files in the folder for your own branding.
  • iosbrowser.ipa - the ios package for the current release, which will be transformed into your own branding
  • transform_ios.sh - the shell script that will do the transform of package into your own branding

It also contains a readme.txt file which has the following content.

How to brand your iOS Application:

1. First you will need to have iOS developer account with Apple. If you plan to release your application to Apple App Store, you will need the normal developer account. If you plan to put the iOS application for enterprise deployment, you will need the enterprise account.

2.You need a Mac OS X 10.10 machine with XCode installed. XCode is a free download from Mac App Store.

3. From the XCode, you can connect to your iOS developer account, download the certificate and create the mobile provision profile.

summary: after step 1,2,3 you will have the certificate ready on your Mac OS X machine; in the keychain. You also have the mobile provision file ready. You can download your mobile provision file from your iOS developer account web portal.

  1. There are two sample inputdir, the inputdir is sample for enterprise application and inputdir_appstore is for Apple AppStore deployment. You will need to prepare the inputdir following the examples.

    4.1-change the parameters in the common.sh to match your iOS product.

    • ACCESSPOINT:

      this is your CentreStack server’s external DNS name, make sure the HTTPS is ready before you try iOS application because by default it connects via HTTPS

    • PRODUCTNAME :

      Product Name

    • PRODUCTNAMENOS:

      Product Name without any space, all in one word.

    • BUNDLEID:

      The bundle id will need to match the application ID you created in the iOS developer program

    • PACKAGEID: Same as above

    • IOSPACKAGEID: Same as above

    • FULLIOSID:

      the team prefix and a dot and the BUNDLEID together

    • CERTIFICATENAME: your certificate to sign the iOS Application

    4.2 various bitmap files, replace the bitmap files, make sure you have the same resolution as the samples.

    4.3 embedded.mobileprovision - this will be your own mobile provision profile downloaded from your iOS program.

  1. the ipa file. The ipa file is the original iOS application package.
  2. transform_ios.sh
The two transform_ios.sh is almost identical. One tested for AppStore with inputdir_appstore input folder. The other tested with Enterprise package with inputdir.

How it works.

The transform_ios.sh will open up the original iOS package in the ipa file, take bitmap files and input parameters from the inputdir folder and replace those in the ipa file.

At the end, it will package the ipa file back into one package, sign it with your own certificate. and the resigned package becomes your own branded package, with access point hard-coded to your access point.

The branding of the icons and images require the icons and images with the same width/height as specified or same aspect ratio if the resolution is higher.

The rest of the branding entries are self-explanatory.

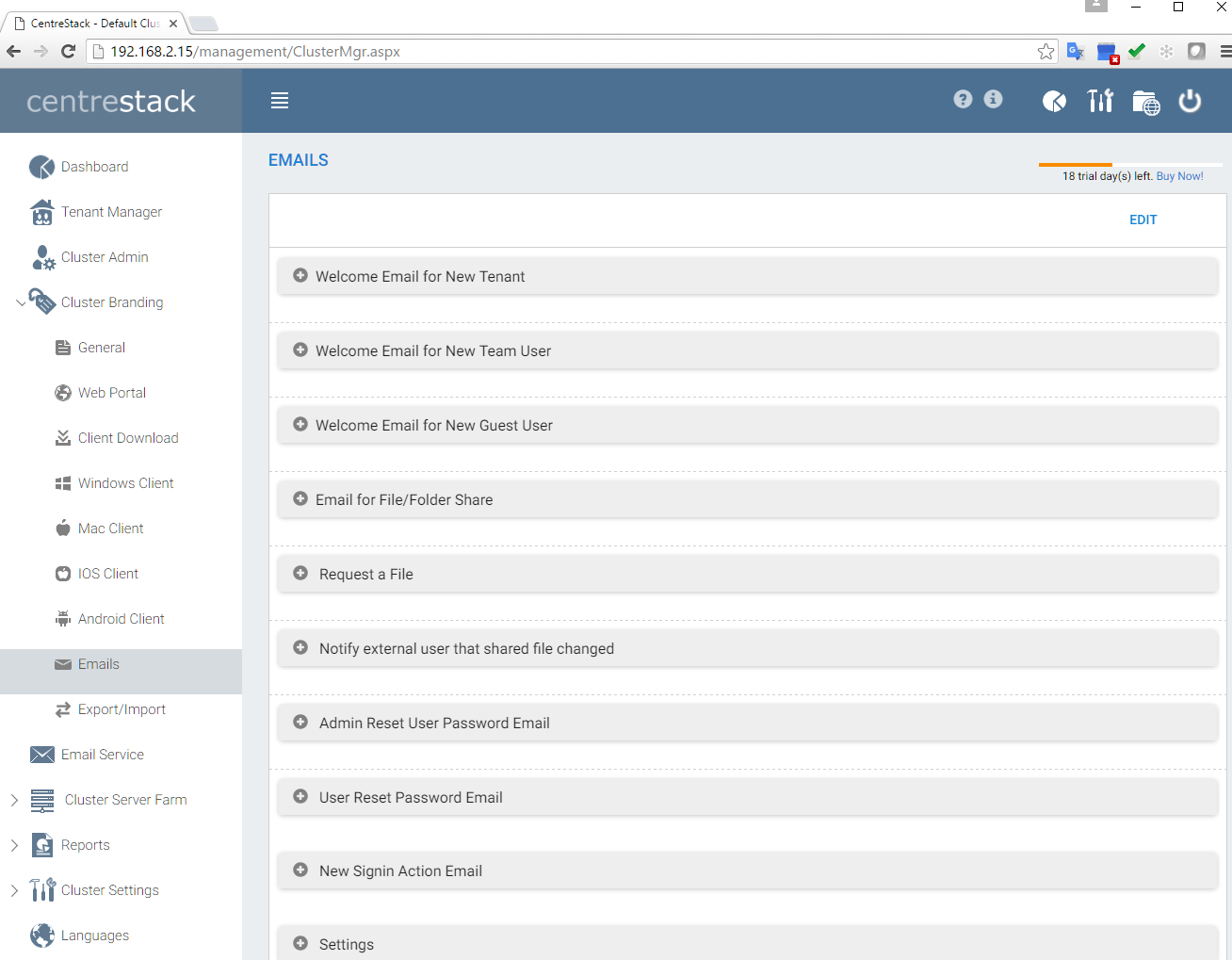

7.Emails

There are many places in the CentreStack that need to contact the users via email. So the “Emails” tab is used to set up the email templates used for contacting users via email.

_images/image009.png

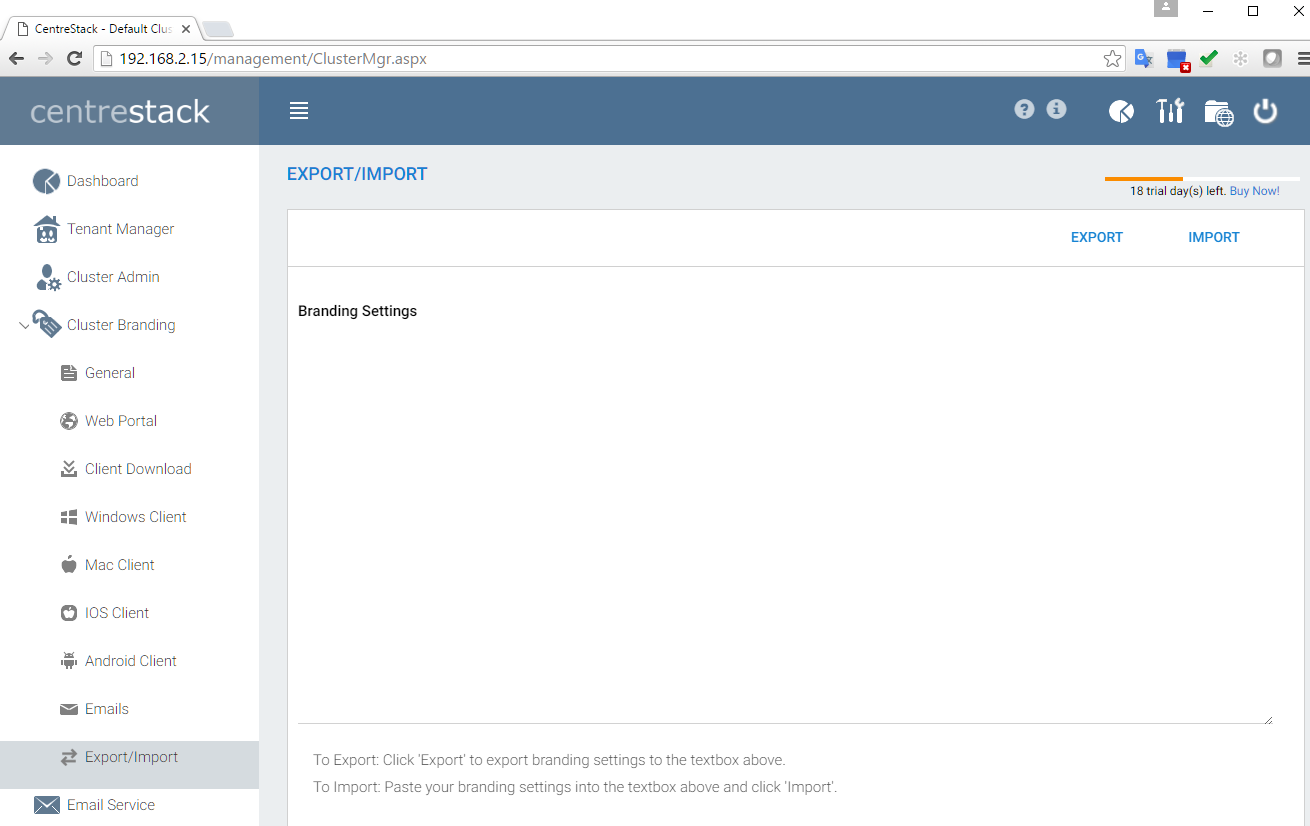

8. Export/Import

You can either export the branding settings to another CentreStack cluster or you can import branding settings from another CentreStack cluster in this cluster under this setting.

_images/image060.png

Email Service

There are many places in the CentreStack solution that the user needs to be contacted by Email. The Email service is used to set up the SMTP email service to send out the emails.

By default, it works out of box using the default email service with CentreStack’s customer support email address as the sender.

It is recommended that the SMTP service being setup to use your own SMTP service to send out emails.

In the Authenticate User field, if your SMTP service doesn’t require authentication, you can put dummy email in the field.

Cluster Server Farm

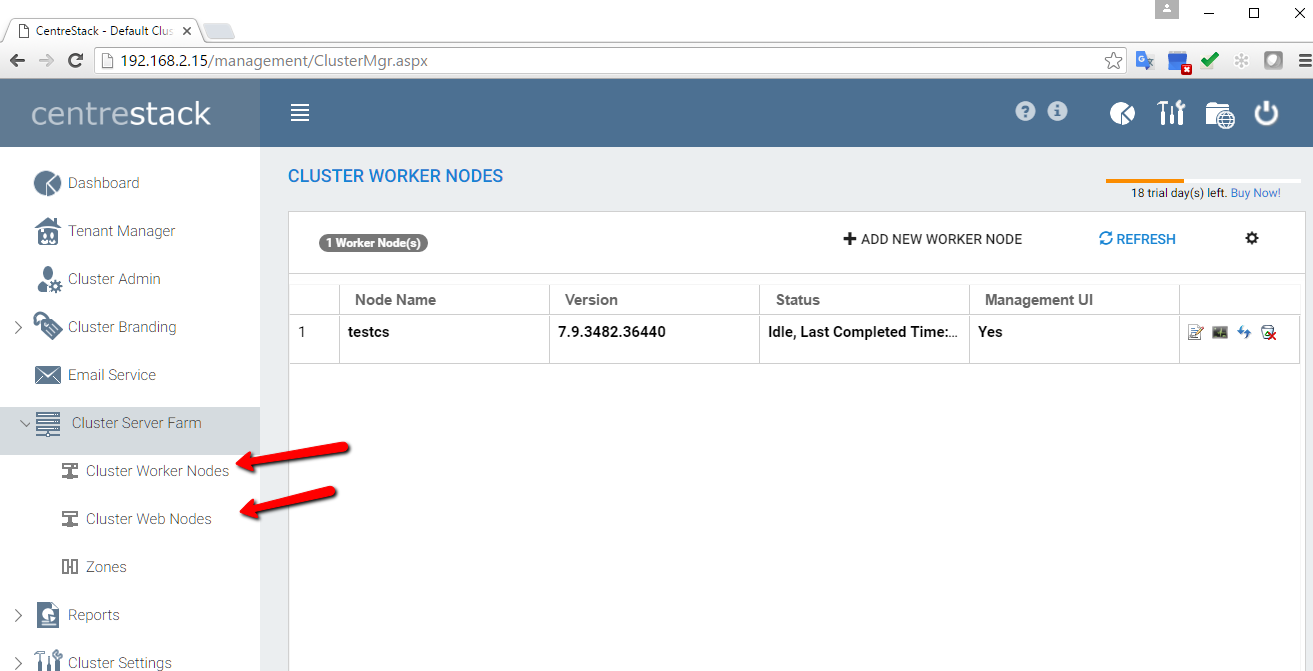

Cluster Server Farm has two types of nodes, one is “Worker Node” and the other is “Web Nodes”.

_images/image010.png

Web Front Node:

Note

In small deployment, there is no need to have web nodes. You can go straight to worker nodes since worker nodes by defaults are web nodes too.

The Account Management, Sign-in and Load-balancing services will be installed on this physical machine (or virtual machine). Depending on the load, you may need 1 to N such nodes. Normally, we recommend for every web front node, you can have 10+ worker nodes. When you have small deployments, you can skip web front nodes and combine them into worker nodes. All the installation work is the same. If you do not need web front node, you do not need to assign them in the cluster manager.

Example:

ACME Corporation deploys two web front nodes node1.acme.com and node2.acme.com. Each node is running a copy of CentreStack server connecting to the same SQL database.

ACME Corporation acquires a domain name (DNS) of cloud.acme.com which is load balanced to node1.acme.com and node2.acme.com.

When Users point their browsers to https://cloud.acme.com it is directed to one of the node for login page.

Note

NOTE 1: If you have hardware load balancing available, you do not need to use web nodes at all.

NOTE 2: Windows 2012/R2 comes with Network Load Balancing (NLB). If you use NLB, you do not need web nodes at all.

Basically, if you have any existing load balancer, you can omit web nodes.

Worker Node:

This type of node will contain services like Web Browser Based File Manager, Storage Service Connectors, and etc. Again, additional nodes can be added as the load increases. Because there is cache information located on each node, users will have an affinity to a single node once it is assigned. If the load balancer distributes users evenly to all worker nodes, the cache information may exist on all worker nodes.

_images/image011.png

In a production environment, almost 100% of the time you will need to check “Always force SSL on Login”. When this is checked and when the CentreStack detects incoming connection is HTTP, it will do a redirect to HTTPS. If you turn on SSL, you will need to setup SSL certificate first.

However, if you have SSL-offload, such that SSL is offloaded to a hardware appliance, and after that, the incoming connection is HTTP between the hardware appliance and the CentreStack. In this SSL-offload case, you will NOT check “Always force SSL on Login” because it will create infinite redirect loop because the incoming connection is always HTTP as far as CentreStack is concerned.

_images/image012.png

In a production environment, almost 100% of the time you will need to check “Always force SSL for Native Clients”. Especially, in the case of SSL-Offload, you MUST check “Always force SSL for Native Clients”. Otherwise, the CentreStack may think that the incoming connection is HTTP so it will continue to encourage the native clients (such as Windows client) to use HTTP instead of using HTTPS.

_images/image013.jpg

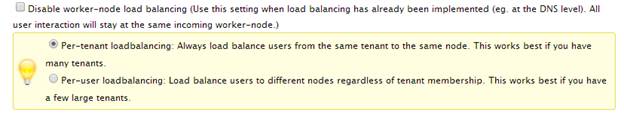

When you have your own load balancer, you will disable worker-node load balancing. CentreStack has built-in node-affinity load balancing, which can be per-tenant or per-user. When you have your own load balancer, you may have session-affinity or just simple round-robin, either one is fine.

Note

How to add worker node? You just go ahead to install CentreStack server, during the installation, point the CentreStack server to the same database. Upon finishing the installation of the CentreStack worker node and reboot, the web portal page will pop up and asking you to add the worker node to the server farm.

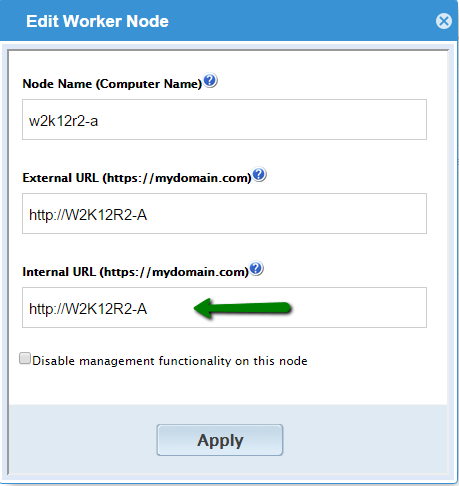

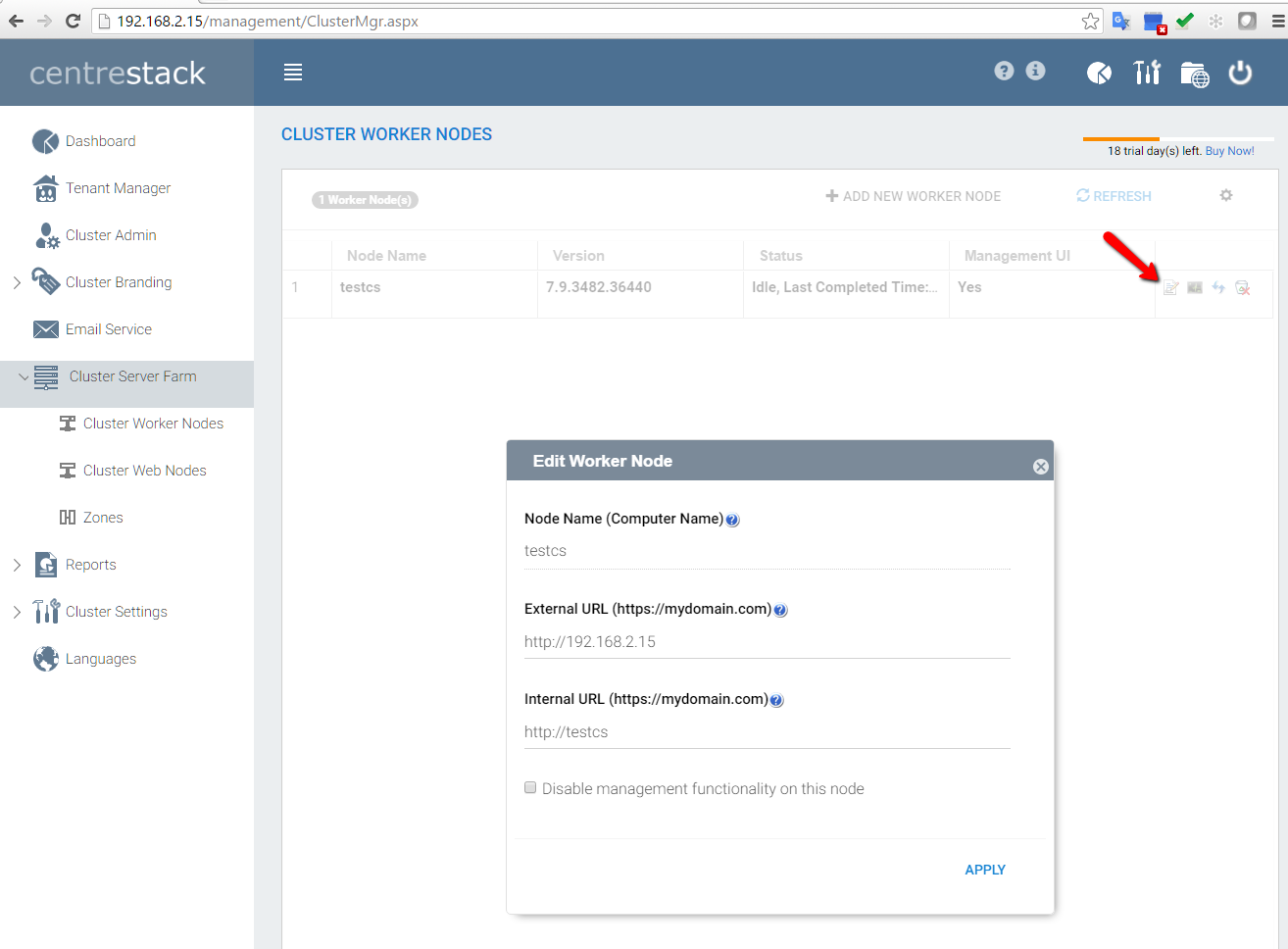

Worker Node Properties
_images/image014.png

You may need to modify worker node properties when you setup SSL and the DNS name for the cluster.

The Node Name needs to match the worker node’s hostname. Sometimes, if you rename a worker node’s Windows hostname (NETBIOS name) after the CentreStack installation, the CentreStack server upon reboot, will pop up a web page, asking you to add the new worker node. In that case, you can go ahead and add the new worker node and then delete the old worker node.

The External URL needs to match the worker node’s external URL. In a production environment, this typically is in an https:// format with the node’s DNS name.

External URL is a critical property for Email templates. Upon the CentreStack installation finished, the dashboard will have a warning message:

External DNS has not been configured for this worker node. Some functionality may not work properly. Config Now

The moment you finalized on the External DNS name of the CentreStack server, you shall come here and configure the ExternalURL property for the CentreStack server.

The Internal URL is the node’s internal URL, typically in the form of http://local-ip-address format.

Disable management functionality – You can create an internal facing worker node (that doesn’t have an externalURL) and only allow management functionality on this worker node. This is a security feature.

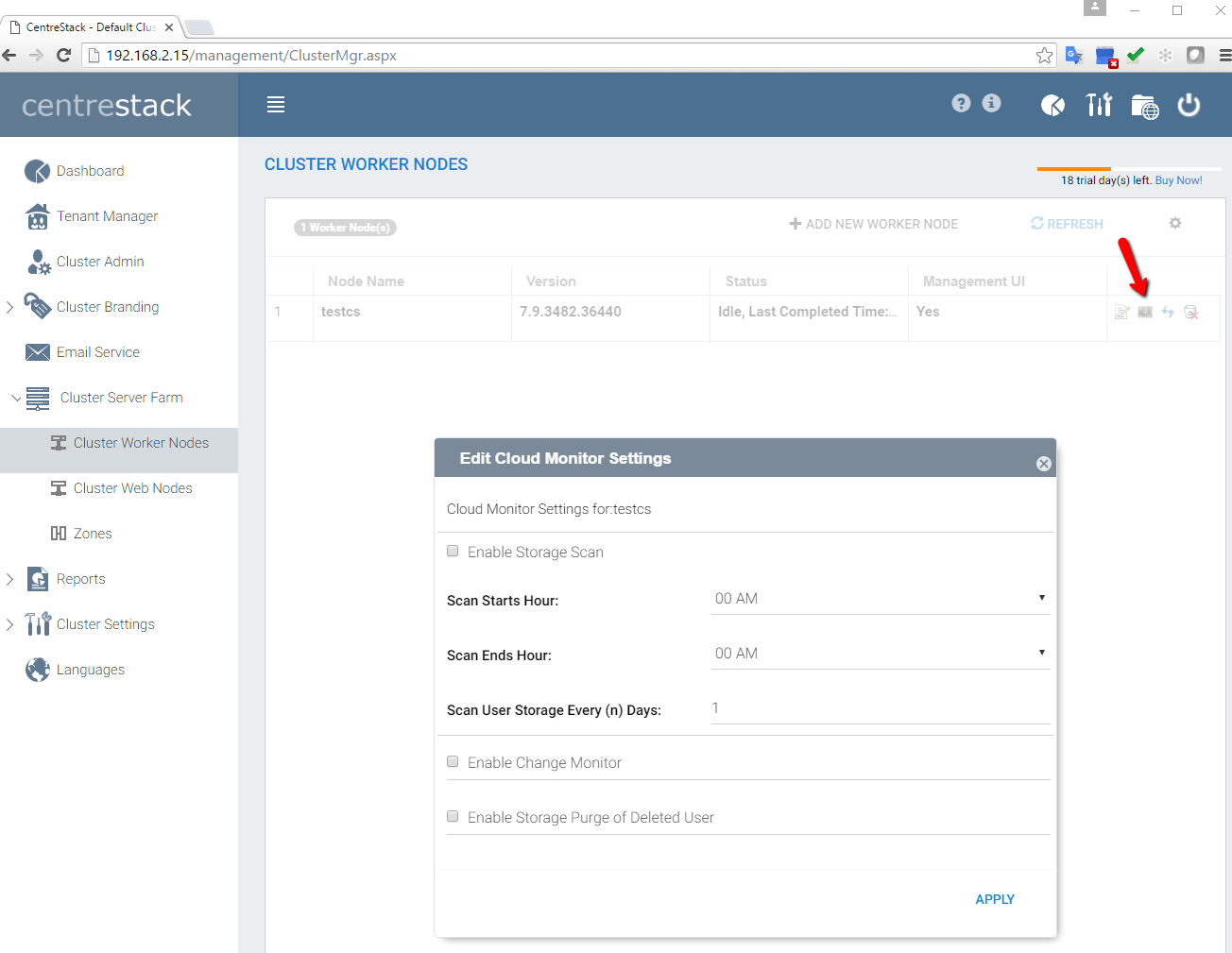

Worker Node - Edit Cloud Monitor Setting
_images/image101.png

The Enable Storage Scan enables or disable storage scan on the worker node. On the worker node, there is a cloud monitor service. The service will be doing background monitoring and make scan storage from time to time to correct quota calculation and perform other maintenance tasks.

Scan Starts Hour: Typically you will set the scan start time to sometime in the early morning like 1AM.

Scan End Hour: Typically you will set the scan end time to sometime in the morning like 8AM before everyone comes to work. The main idea is to leverage idle time (when people are not at work) to do the scanning.

Scan User Storage Every (n) Days: Typically you can set it to every week or every other week. so a number between 7 to 15 is reasonable.

Enable Change Monitor: Enable change monitor monitors the attached local storage such as storage from file server network share and report file change notification to remotely connected clients. This usually is required if your users are both modifying documents directly from the backend attached network share and also from the front end CentreStack access clients.

Enable Storage Purge of Deleted User: When a user is deleted from the system, the user’s home directory is not immediately removed. And a lot of times, you don’t want to delete it at all. For example, a user is deleted from the CentreStack system, but the user may still continue to use the files and folder directly from Microsoft network.

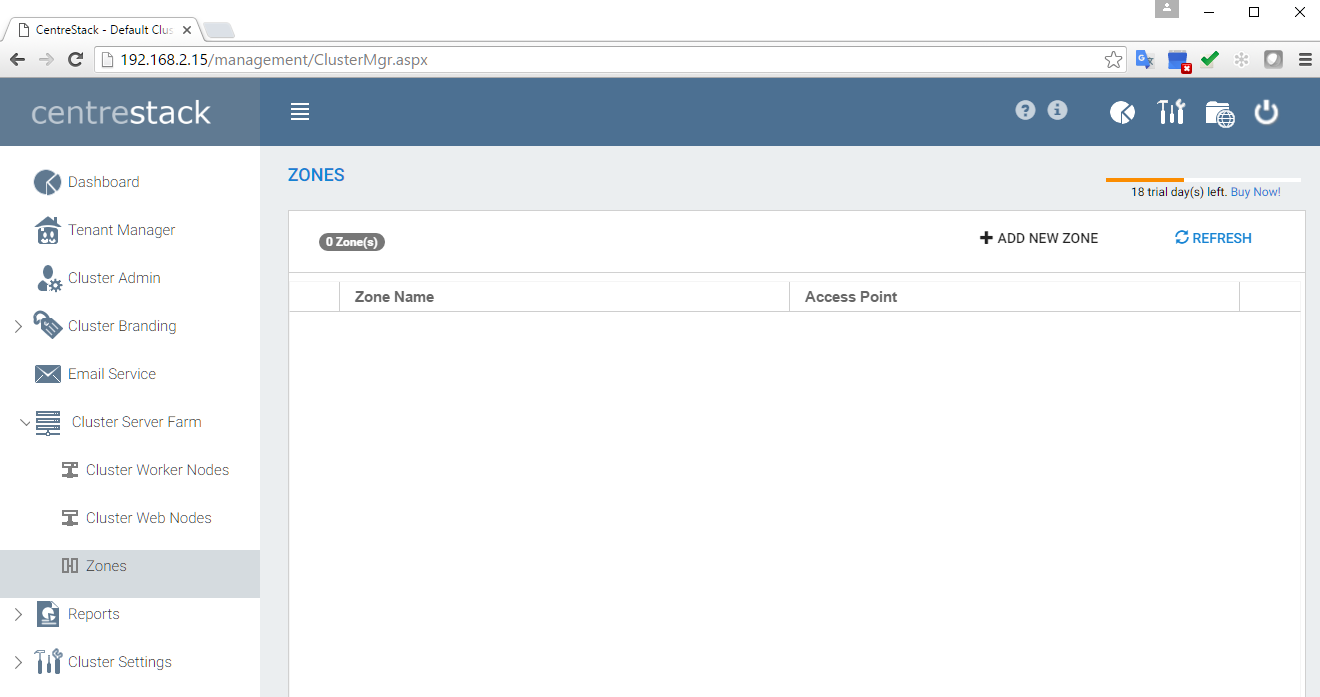

Zone

The concept of zone is to associate worker nodes with the location of the storage. When you think about zones, you will think about your storage location first.

For example, I have storage in LA so I have an LA zone. I also have storage in NY so I have a NY Zone.

You can have worker nodes from different zones as well and assign users to specific zone. If user’s home directory is coming from LA zone, the user will need to be assigned to LA zone.

_images/image015.png

Reports

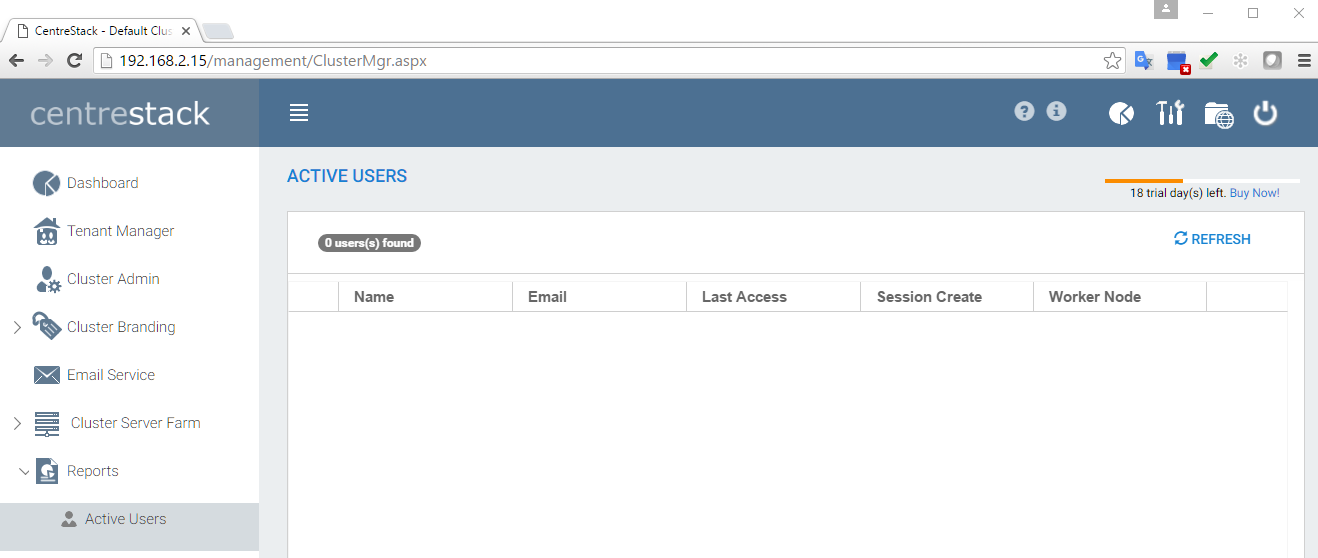

9.1 Active Users

Active users reports the active users on the web portal. The active users report doesn’t include users from windows client or other native clients because those users are more persistent (always there).

_images/image128.png

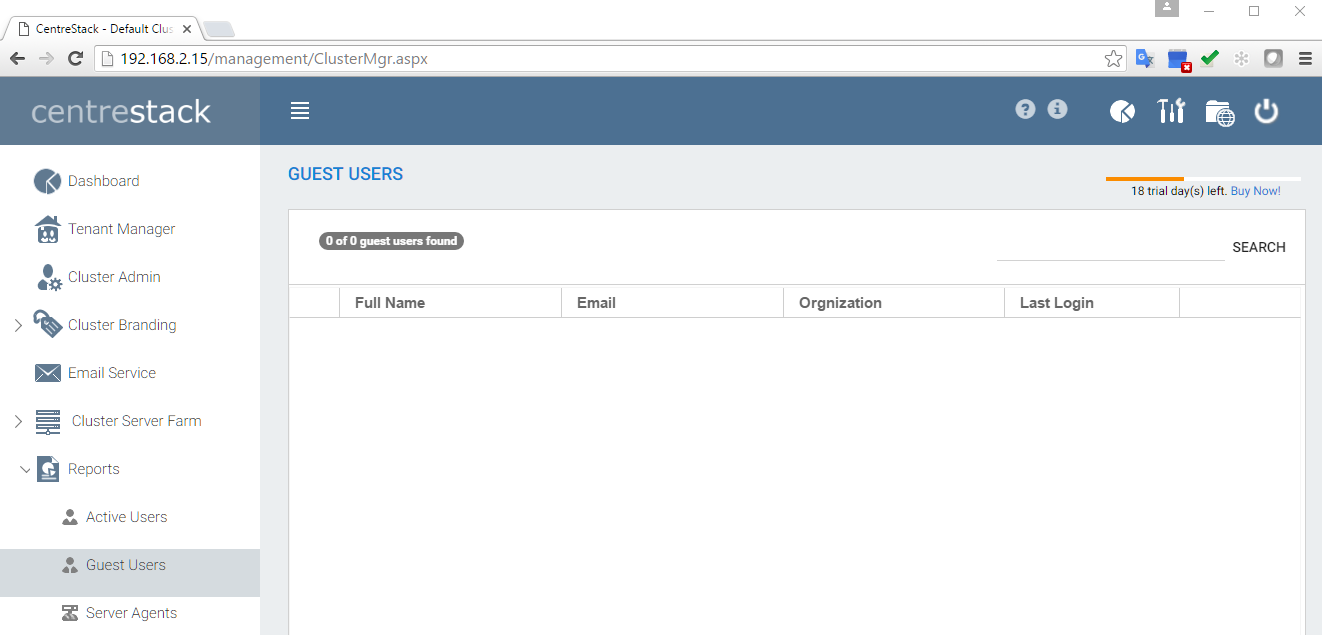

9.2 Guest Users

Guest users are those users that don’t have a home directory but are invited to participate on some shared folders and shared files.

_images/image129.png

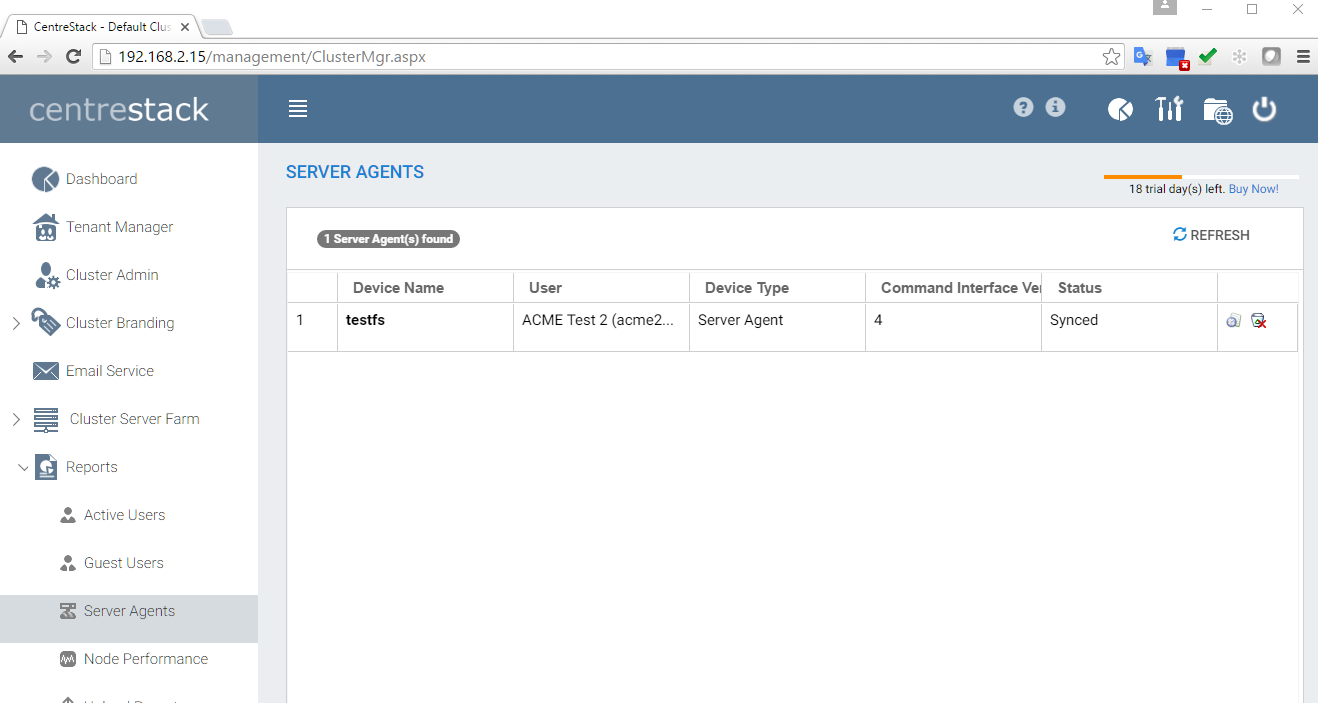

9.3 Server Agents

Server agents are the software agents that installed on remote file servers and help connect remote file servers to CentreStack server.

_images/image130.png

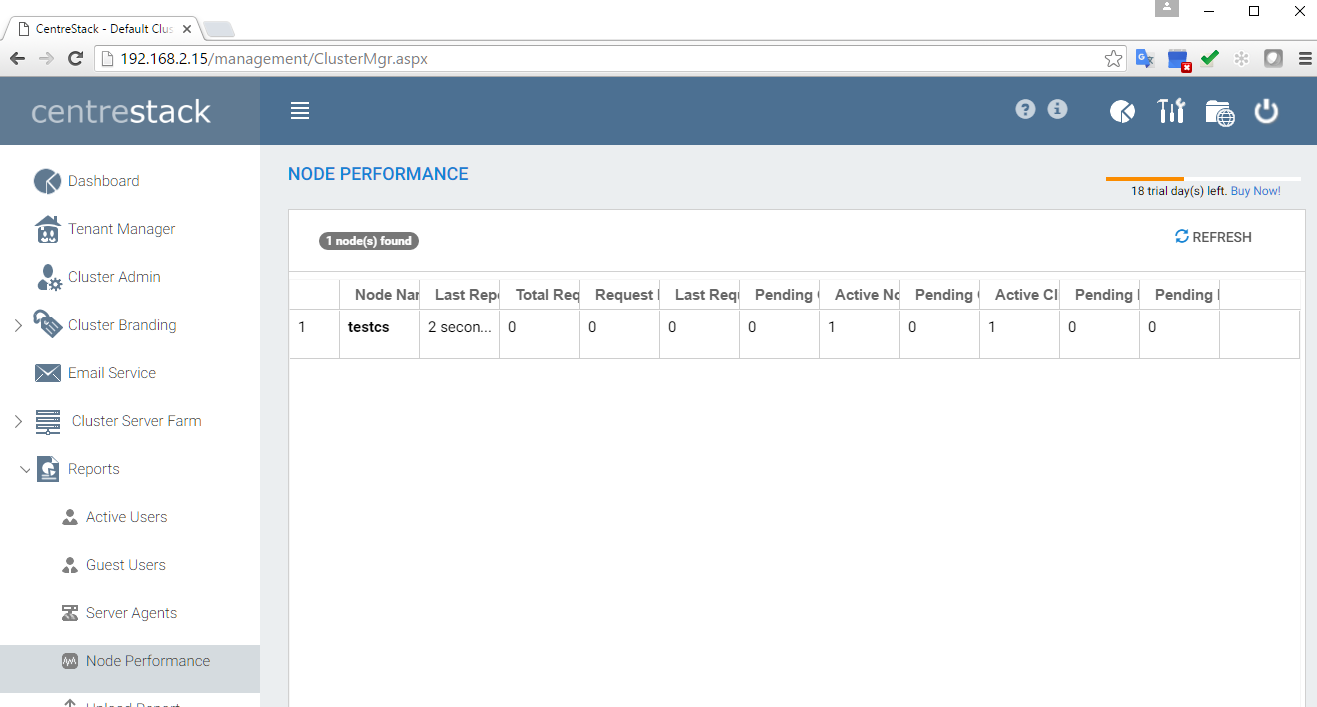

9.4 Node Performance

You can use the Node Performance to check out the worker node health.

_images/image016.png

Last Reported– You want to see this field has small numbers such as 6 seconds, 10 seconds. If you see sometime like 3 hours ago, that means the node is not reporting the health.

Total Requests Processed – You want to see this number as big as possible. This number is accumulative since the service was last re-started. So the bigger the number, the more stable the service is. Also when you have multiple worker nodes, you want to see the Total Requests distributed evenly among the worker nodes.

Request Executing – You want to see this number as small as possible. This mean the number of requests that are concurrently executing in the server. In general the number smaller than 100 is normal. Bigger than 100 is abnormal. Anything bigger than 20 will require investigation.

Last Request Time – You want to see this number as small as possible. This means the number of milliseconds for the last request. In general, numbers smaller than 3000 or 5000 are normal, which translates to below 3-5 seconds.

Pending Change Notification – For the files and folders that are changed, there is change notification written to database. In general, you want to see pending queue as short as possible.

Active Node Request – This are the clients out there contacting the server. Usually it is just for the reporting purpose.

Pending Change Polling– This is the clients out there polling to see whether there are files and folders that are changed. Usually the smaller the better.

Active Clients – For reporting purpose.

Pending Dir Request(H) – The pending directory listing calls from the remote clients to the CentreStack server. This is the high priority queue.

Pending Dir Request(H) – The pending directory listing calls from the remote clients to the CentreStack server. This is the low priority queue.

Note

If you don’t see the node performance report, check the Internal URL setting of each worker node.

_images/image017.png

Under reports you can look at the upload graphs and storage statistics.

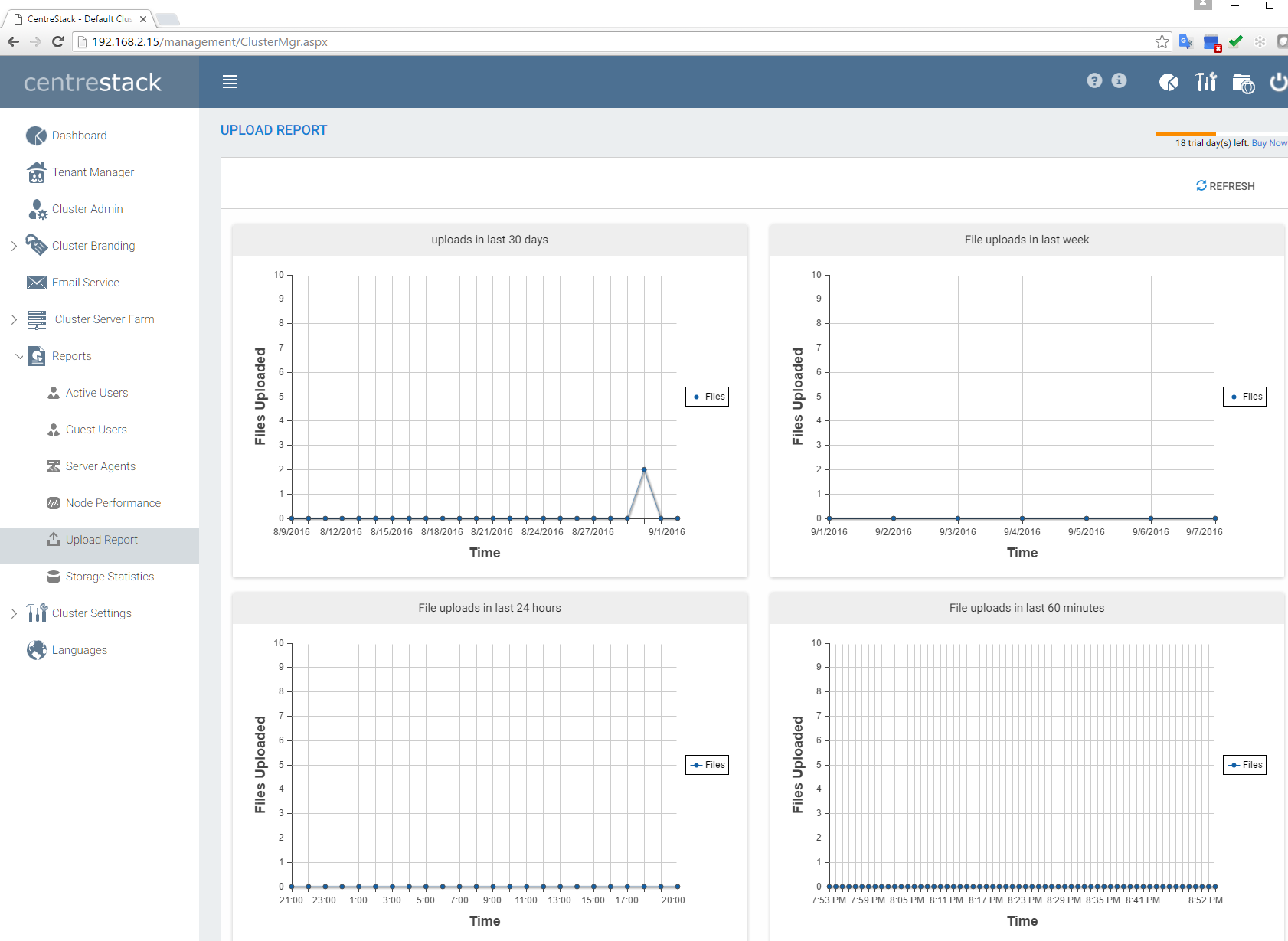

9.5 Upload Report

Upload report tab shows you graphs for all the uploads that have taken place on the last sixty minutes, 24 hours, 30 days and the whole week.

_images/image063.png

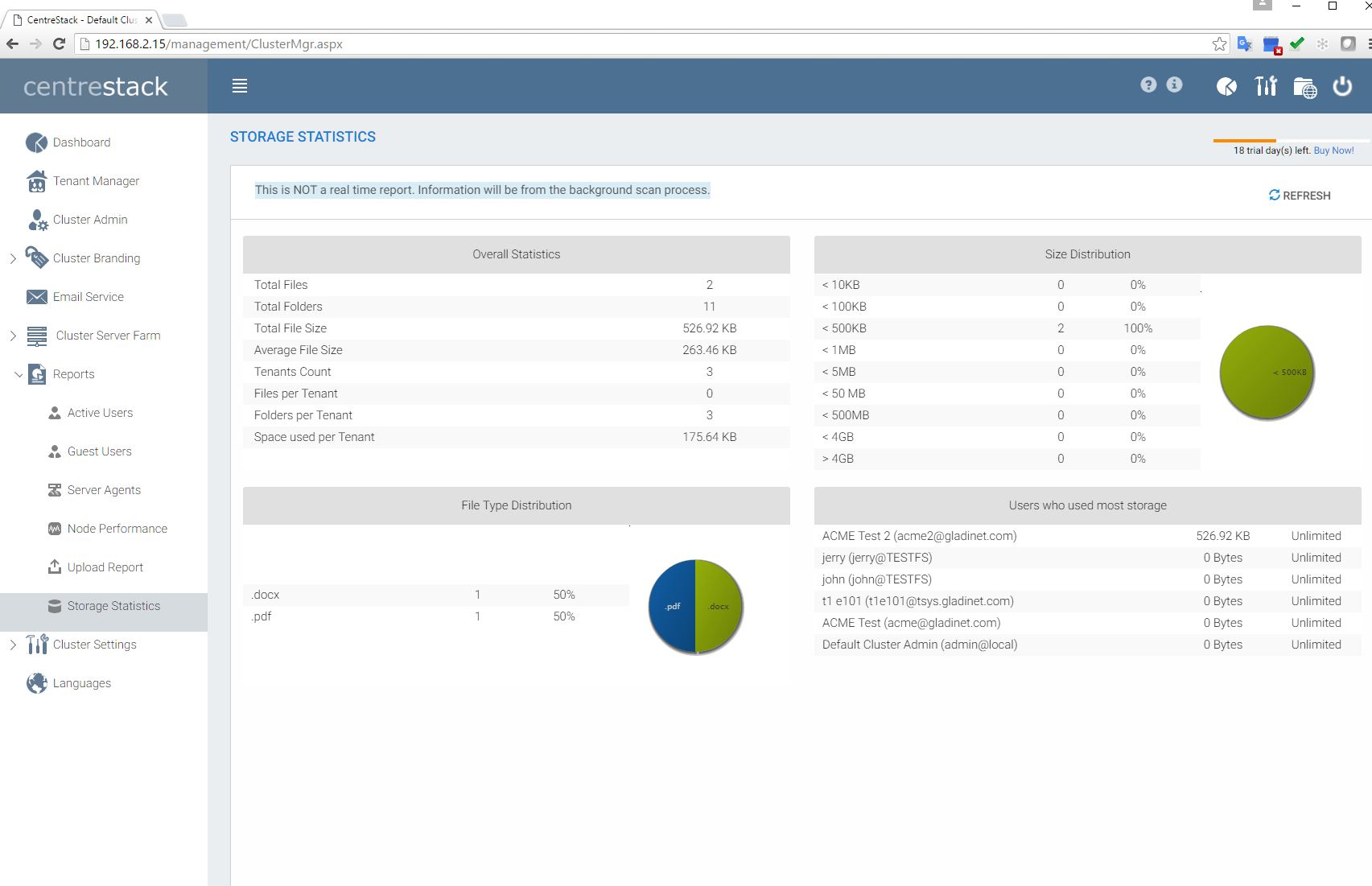

9.6 Storage Statistics

Under storage statistics, you can see a quick overview of the overall storage statistics, size distribution and file type distribution pie charts, and users who have used most storage so far.

_images/image064.png

10. Cluster Settings

Under cluster settings, you can configure auto-client update, web applications, and other settings like 2-Step Verification, multiple domain support, etc.

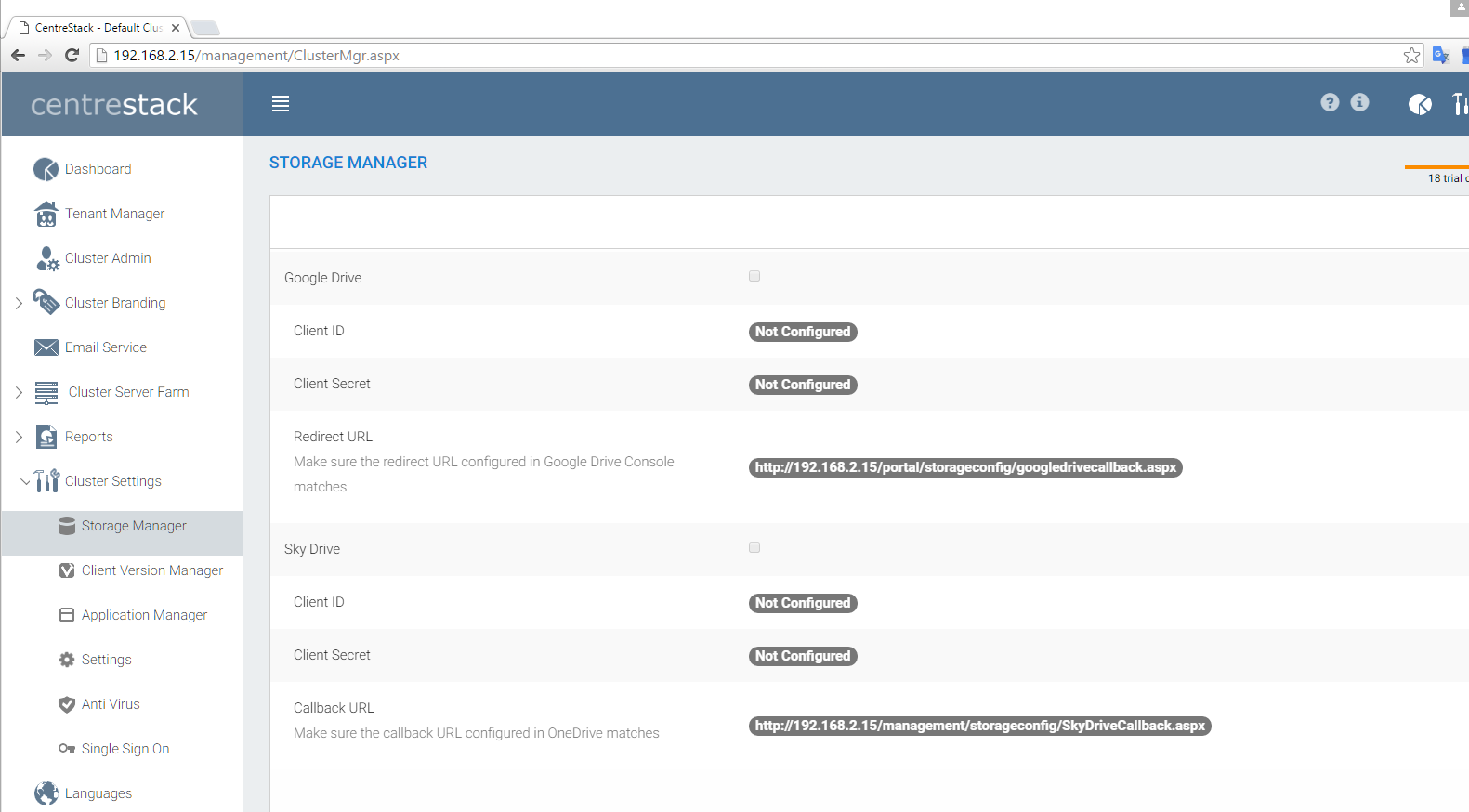

10.1 Google Drive and SkyDrive Integration

_images/image131.png

10.2 (Client Version Manager) Client Auto Update

For Windows Client, Mac Client and Windows Server Agent, there is auto client update feature. Each upgrade package contains the updated clients. By clicking on the “Publish” button, the newer package can be published to clients out there.

Every new CentreStack server upgrade contains the newer Windows client, Windows Server Agent and Mac Client. The CentreStack users via manual download can get the clients that are included in the CentreStack server. However, for existing users that with previously installed clients, those older clients will not auto upgrade until the later and newer client packages are published.

Daily Upgrade Limit: This is a per-worker node setting. For example, if you have 2 worker nodes, and set the daily upgrade limit to 100, maximum 200 clients will be upgraded per day.

Apply to Users: This typically is used for testing prior to push the client out.

Do Not Apply to Users: This typically is used for testing prior to push the client out and to excluse certain users.

_images/image018.png

Note

The windows client out there has a process running as a background windows service. The service will periodically check for newer upgrade in about 1-2 hours interval. Once a newer client package is published and discovered, the newer package will be downloaded. However, if the client is still actively running, the replacement and upgrade will not happen until the client application is stopped and restarted. This usually happen after Windows logoff or restart.

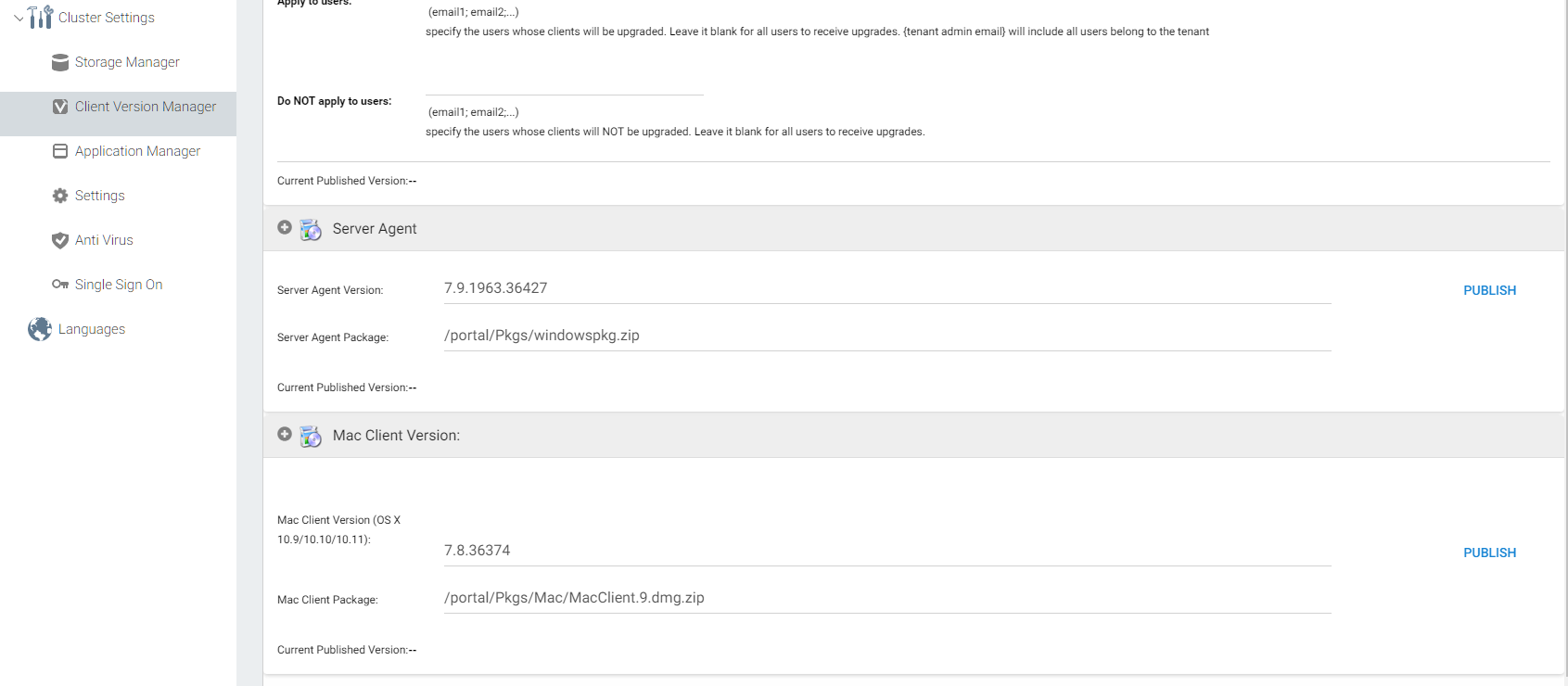

Server Agent

Windows Server Agent can be separately published for auto upgrade.

Mac Client

Mac client can be separately published for auto upgrade.

_images/image132.png

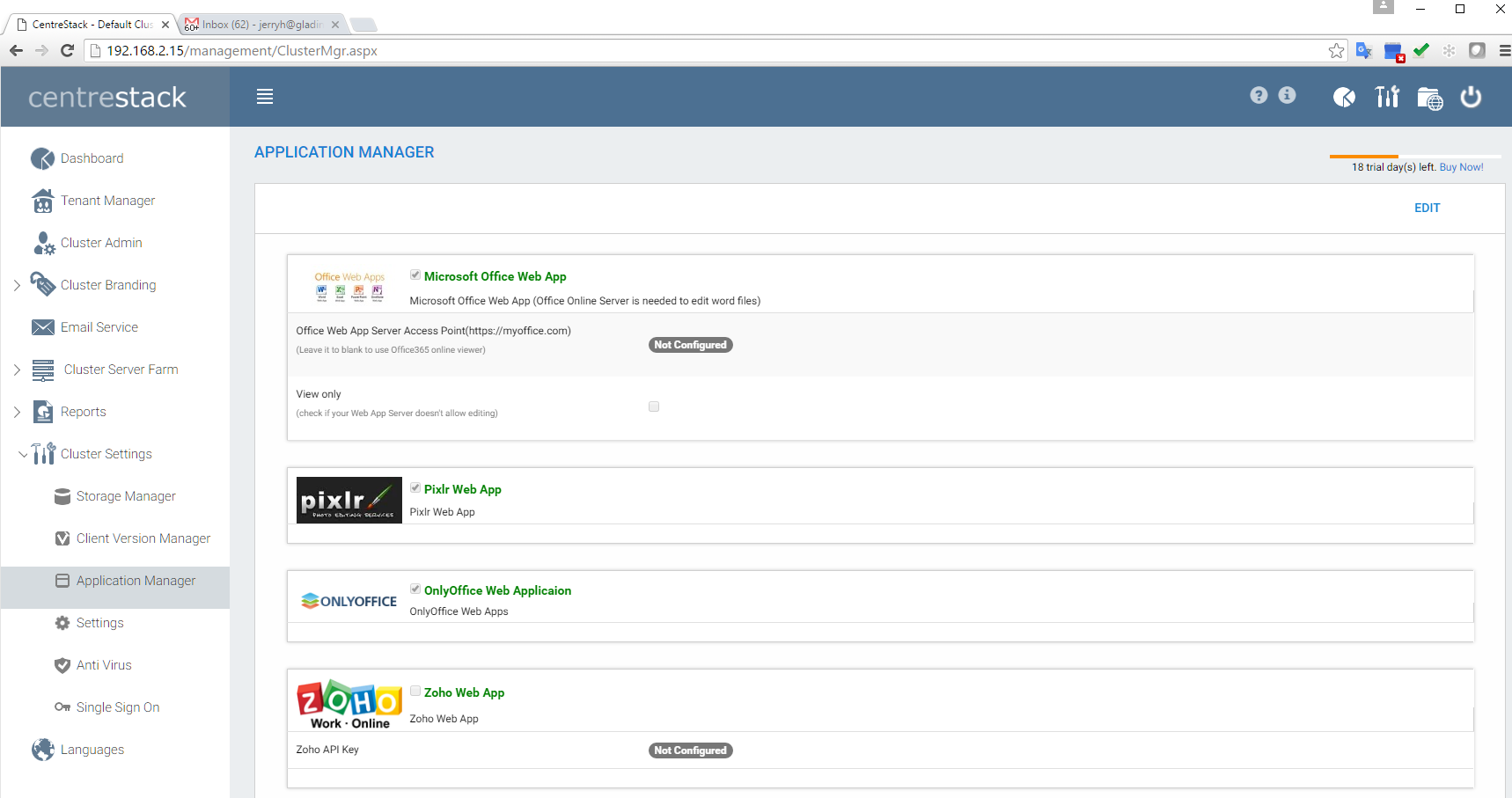

10.3 Application Manager

You can also configure Web Apps under ‘Application Manager’ tab in Cluster Settings. This will enable the users to edit documents using the web apps. The applications here only applies to web portal based editing.

_images/image066.png

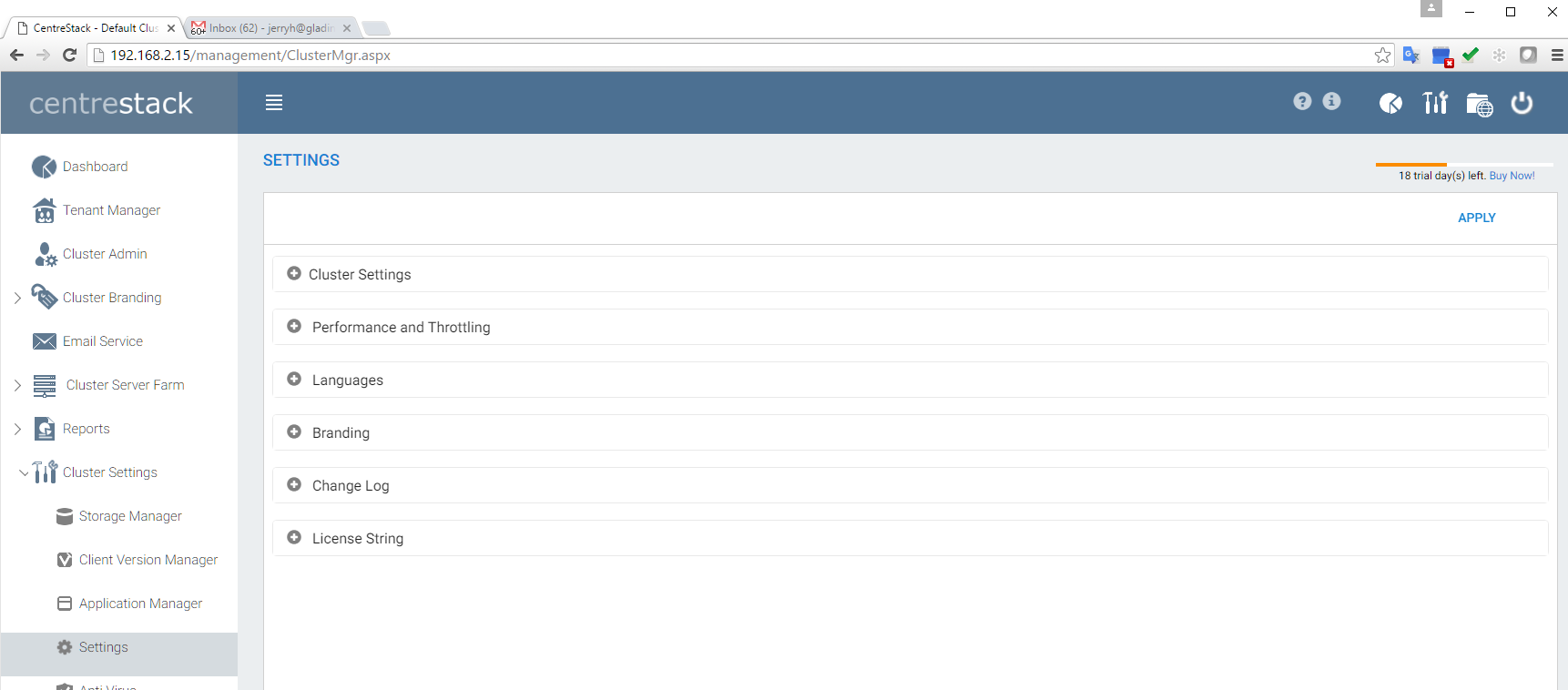

10.4 Settings

_images/image019.png

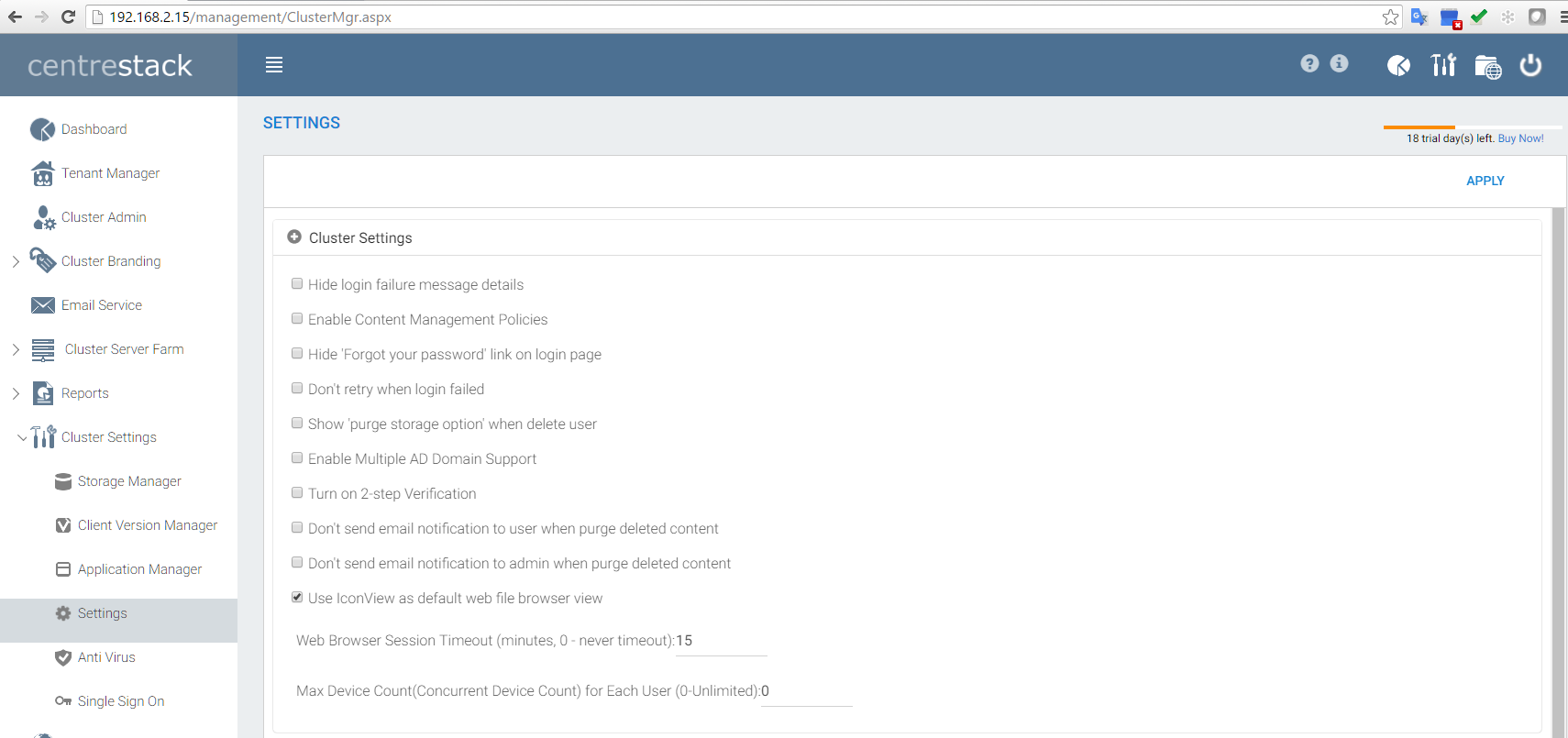

Cluster Settings
_images/image133.png

Hide Login Failure Message – When checked, the login failed message will be replaced by a very generic “Login Failed” message. When un-checked, it may return more meaningful login error, such as user-not-found, authentication-error and so on.

Enable Content Management Policies – Reserved

Enable Tenant Branding – When enabled, each tenant administrator will see the tenant branding page so they can further customize the look and feel of the product.

Hide ‘Forgot your password’ link on login – Most often it is used when Active Directory integration is set. The user will need to do forget-and-change password the normal Active Directory way instead of the way CentreStack provides.

Don’t retry when login failed – Most often it is used when the Active Directory user has low failed-count on lock-out policy. When the user’s password is wrong, a few retry can lock out the user’s Active Directory account. The retry feature can be used when there is no Active Directory lock out or when the lock out count is high.

Show ‘purge storage option’ when delete user - By default when a user is deleted, the user’s home directory storage content is not touched for later use or review. If it is desired to delete the user’s content when the user is deleted, this can show the purge option.

Enable Multiple AD Domain Support– When you have multiple Active Directory from multiple forests, you can turn on this option. The CentreStack software is capable of automatically search for domains in one single forest. However, for multiple forests, the software will allow you to manually enter the root of each domain when this option is enabled.

Turn on 2-step Verification – CentreStack supports Google Authenticator, Amazon Virtual MFA soft token for 2-step verification. When this setting is turned on, users will see the option to configure 2-step verification in their web portal.

Don’t send email notification to user when purge deleted content – When user deleted version folder or deleted items alls into the Trash Bin, the purge is asynchronous and scheduled at a later time. This setting controls the notification.

Don’t send email notification to admin when purge deleted content – When user deleted version folder or deleted items alls into the Trash Bin, the purge is asynchronous and scheduled at a later time. This setting controls the notification.

Use ‘Icon View’ as default web file browser view – Icon view is set when this setting is enabled.

Web Browser Session Timeout (minutes, 0 - never timeout): This is the web browser session time out value. default is set to 15 minutes.

Max Device Count(Concurrent Device Count) for Each User (0-Unlimited): This is the number of concurrent devices connected to CentreStack for each user. The default is not limited.

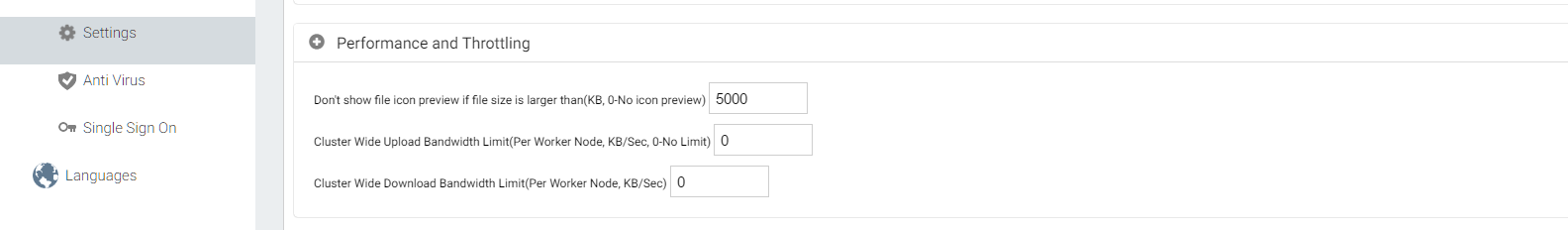

Performance and Throttling
_images/image134.png

Don’t show file icon preview if file size is larger than(KB, 0-No icon preview) - This is used to control iconview thumbnail generation. The generation of thumbnail takes CPU power. For big files, the generation of thumbnail may negatively affect system performance. So it is recommended to cap the feature to certain image size.

Cluster Wide Upload Bandwidth Limit(Per Worker Node, KB/Sec, 0-No Limit) - This is to limit upload bandwidth.

Cluster Wide Download Bandwidth Limit(Per Worker Node, KB/Sec) - This is to limit download bandwidth.

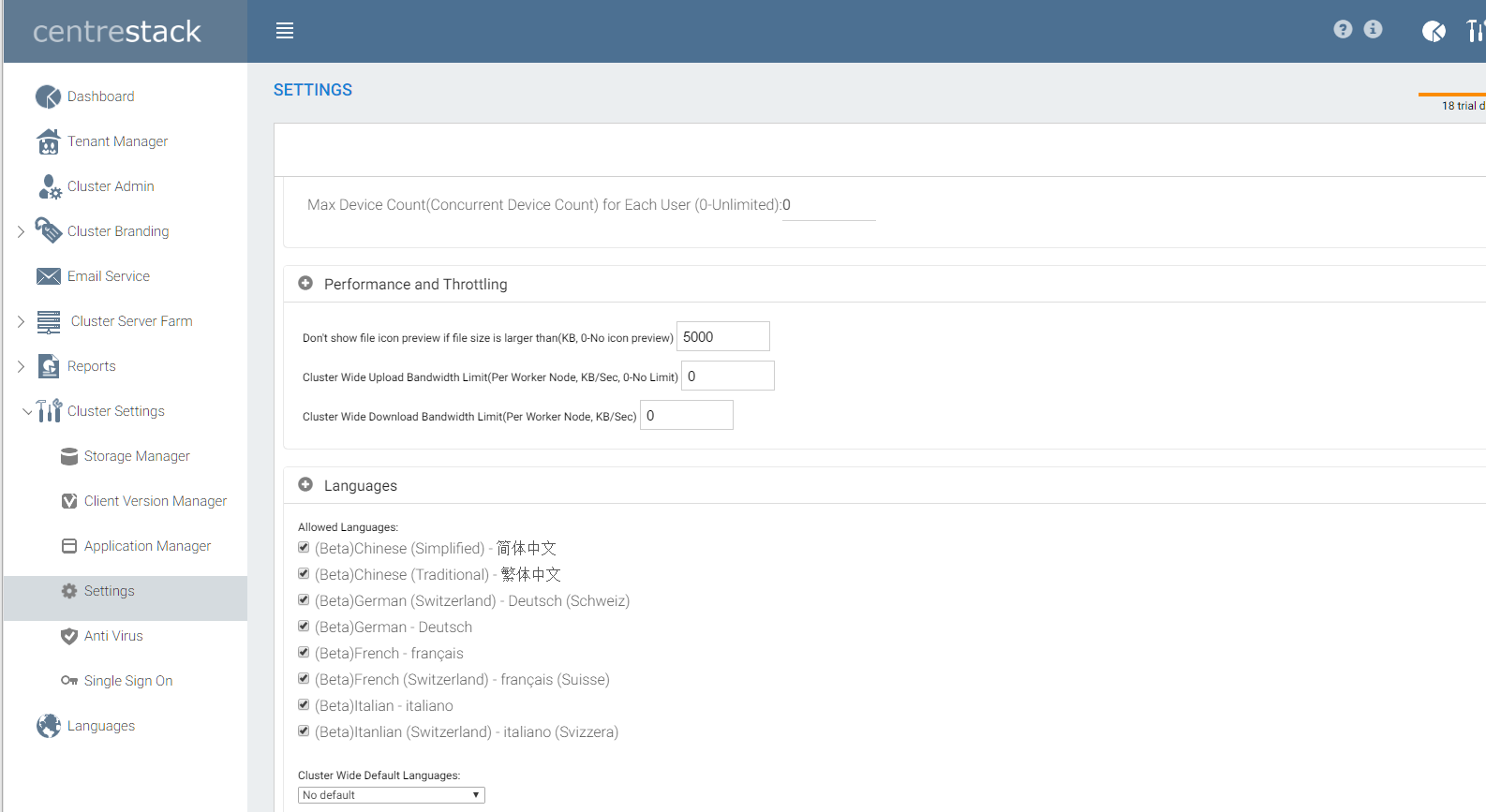

Lauguages
_images/image135.png

This section setup the web portal languages and also client application language for Windows client.

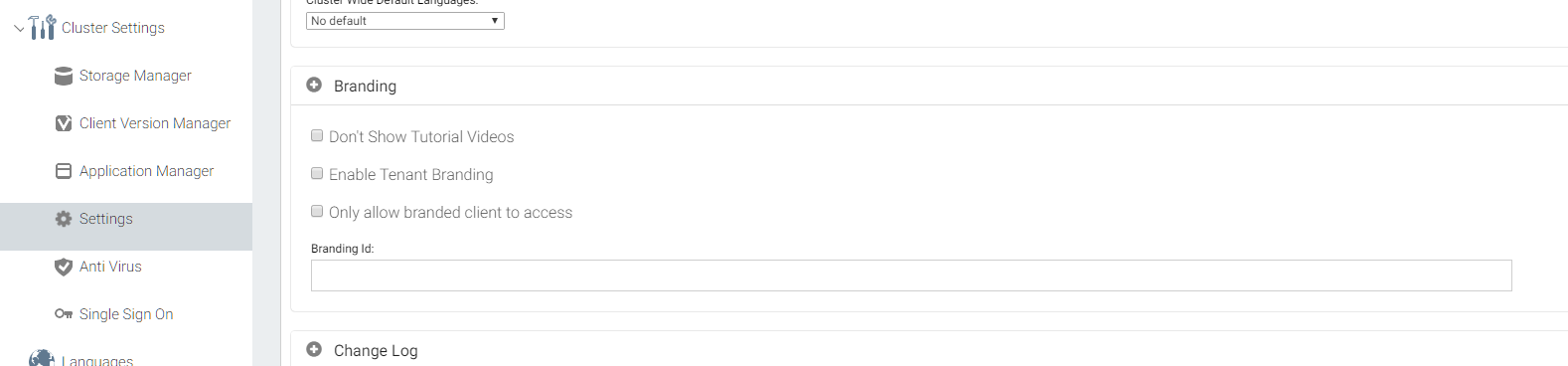

Branding
_images/image137.png

Don’t Show Tutorial Videos - At different places in the web portal, there are tutorial videos. This setting is to hide those videos, which may have CentreStack references inside.

Enable Tenant Branding - Allow tenants in the system to have their own co-branding on a tenant-by-tenant basis. The branding can override the default Cluster wide branding when the solution is accessed via a specific URL. Most of the time, a wild card SSL certificate is used so the CentreStack solution can be bind to different URL with a common suffix. For example *.mycompany.com , while tenant1.mycompany.com is for tenant 1’s access.

Only allow branded client to access - This can lock out the generic client and only allow branded client to connect.

Branding Id – This setting only apply to full-branding clients. For the full-branding client, it is possible to lock the full-branding clients to only connect to the branded CentreStack server. When set, it will lock out the white-label clients or other non-branding clients and will not allow them to connect.

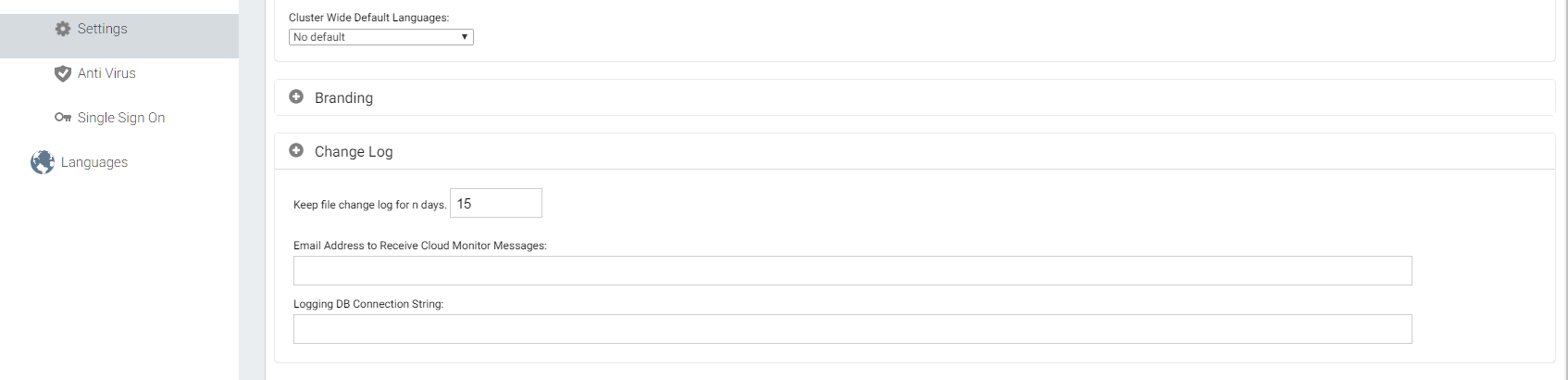

Change Log
_images/image136.png

Keep file change log for n days - This is a cluster wide retention policy for the file change log. The file change log is in the SQL database, for deployments that are using SQL Express, it has size limitation for the database. In the deployment guide, there is option to split the file change log into MySQL database or split it to a different SQL database. This option typically is used to keep the size of SQL small.

Email Address to Receive Cloud Monitor Messages - From time to time, the cluster monitor service may send email about status, alert and here is the email address to receive the emails.

Logging DB Connection String - This is to split the file change log, device table, file index table and audit trace table out of the main database into a secondary database. The secondary database can be a Microsoft SQL Server or a MySQL Community server.

The CentreStack database is split into core part and the logging part. The core part can store the DB connection string that connect to the secondary database. This setting used to be in the web.config file.

License String – Reserved.

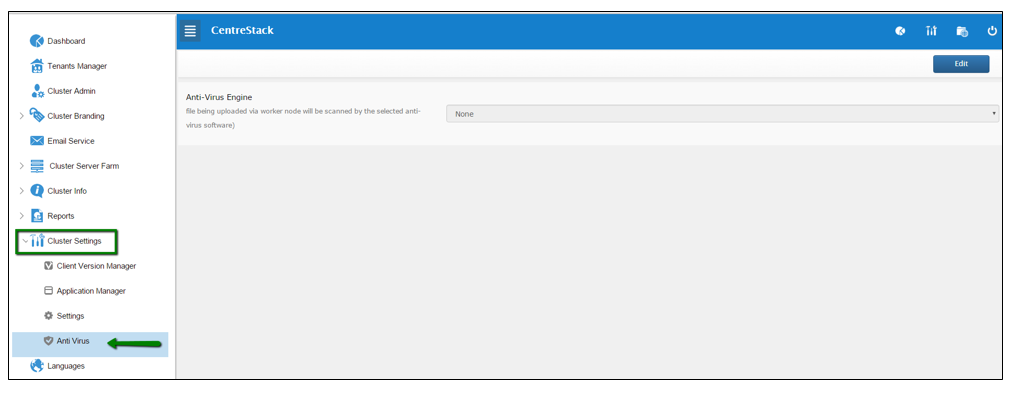

10.6 Anti Virus

You can enable anti-virus protection which will ensure that the files being uploaded via centrestack server are scanned by the selected anti-virus software.

You will first need to obtain the anti-virus service that is independent from the CentreStack server, and get it directly from the anti-virus vendor. After that, you can integration the anti-virus service into CentreStack server.

_images/image067.png

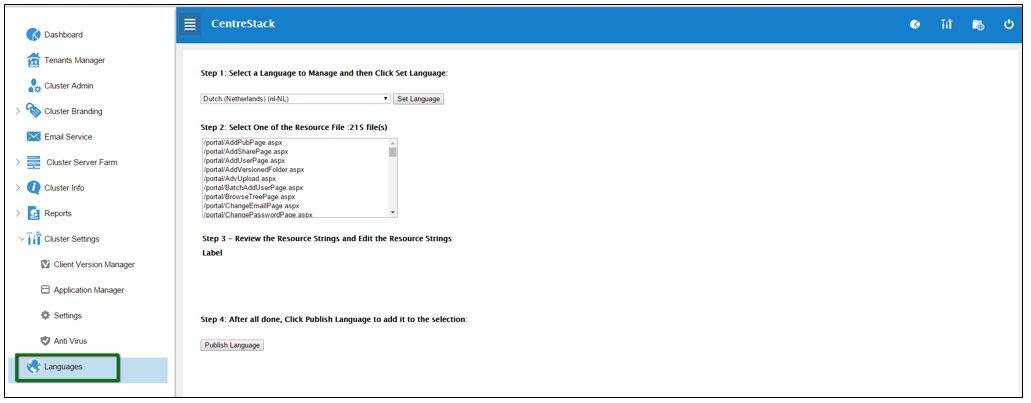

Languages

We have automated translation and provide the resource files that you can use to localize the web portal and clients in the language of your choice. If there are strings that not translated yet in the language you want, just go ahead and select the string and put in the translated string in the window for the language selected.

_images/image065.png
